WindSonic ultrasonic anemometers are designed to provide wind measurements and flexible output options. Customers around the world have found WindSonic easy to use and reliable and have integrated it into a wide range of their own products.

Gill WindSonic 60 is a low-cost anemometer, which utilizes Gill’s proven ultrasonic
technology to provide wind speed and direction data via one serial or two
analogue outputs. To confirm correct operation, outputs are transmitted together
with an instrument status code.

WindSonic is WMO-compliant for gust measurement.

With a robust, corrosion-free polycarbonate housing, this small, lightweight
wind sensor is recommended for use in harsh environmental conditions
and is particularly suited to marine & offshore (ships, data buoys) and land
based installations. WindSonic anemometers have no moving parts, offering
maintenance-free operation in a wide range of applications.

Measurements:

• Wind speed & direction

Output:

• Option 2 (RS232, RS422, RS485)

Variants:

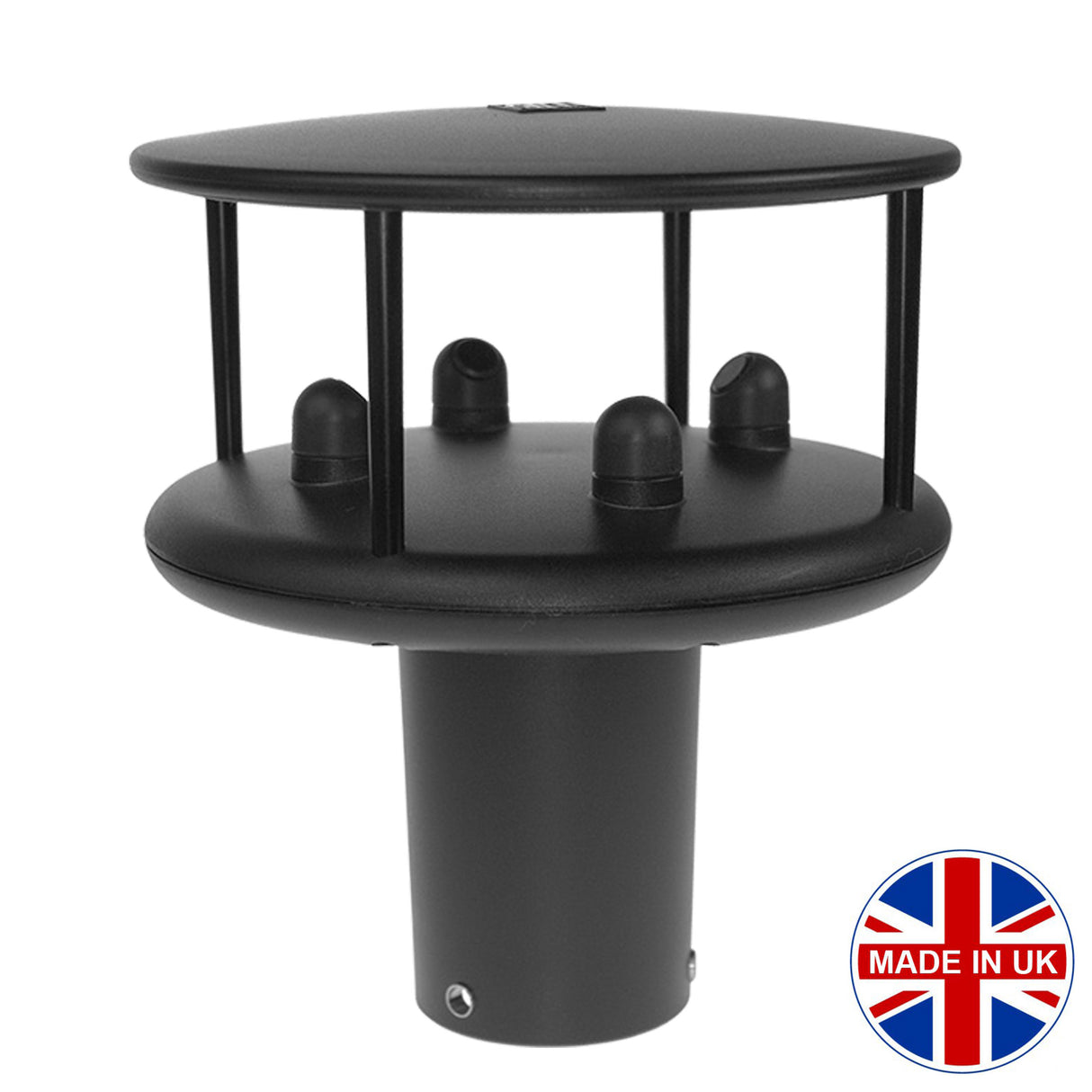

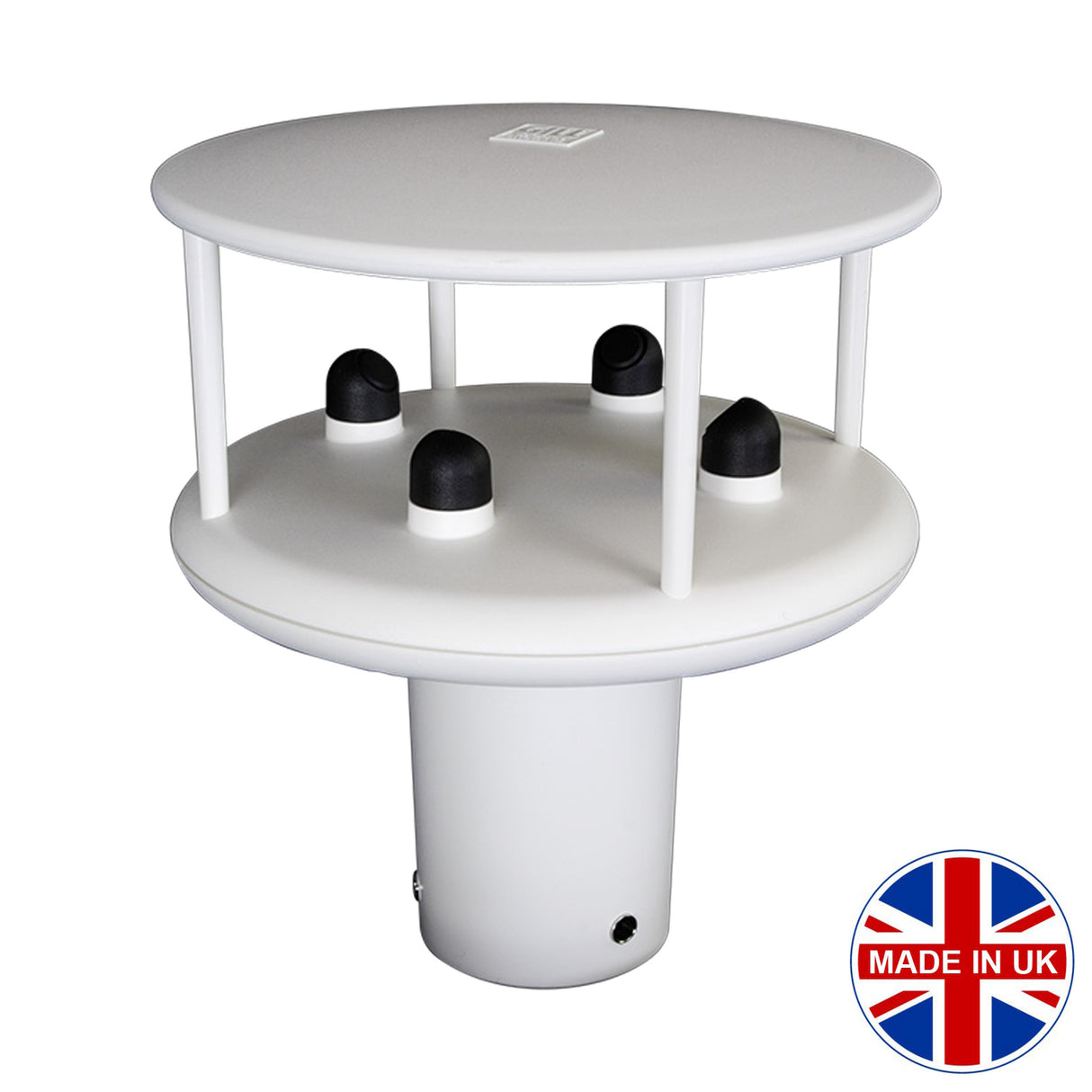

• Color (Black or White)
• Output (Available Upon Request)

Highlights:

• Wind speed & direction sensor
• 0-60 m/s (116 knots) wind speed
• 0-360º wind direction
• WMO-compliant gust wind speed and direction calculated from a
  rolling average
• NMEA output
• Low power consumption
• Fast start-up
• Solid-state ultrasonic technology - no moving parts
• Corrosion free

Typical Applications:

• Remote weather monitoring stations
• Building controls
• Data buoys
• Marine vessels
• Small airports & helipads
• Road & rail tunnels
• Environmental field sites
• Ports & harbours
• Mobile weather monitoring vehicles
• Coastal weather monitoring stations

Files:
WS60 Datasheet
WS60 Manual
