Description:
The Ultra Low Power LoRa Instrument is a wireless, Bluetooth Low Energy (BLE) and battery-powered, compact ultrasonic anemometer, easy to install, simple to use and compatible with IOS, Android and Garmin watches. This wind meter allows you to get Wind Speed & Direction up to 1,86 miles (3 Km). The ULP LoRa product was developed to meet the need for a device that can be placed in remote locations without requiring specific infrastructure, enabling data to be received from several kilometers away. This means the anemometer can be installed at a desired location, with data being received remotely “over the air” through a small receiver device that adapts the output format to the client’s preferred configuration. Various markets and situations would find the ULP LoRa particularly beneficial.

Measurement Parameters

• Apparent wind speed and direction.
• Real wind speed and direction (if used on a vehicle or boat).

Features

• Tracking of your wind data and exportation via excel or Google Earth.
• Available upgrade to the latest firmware version from the App-This new add-on will let the user to upgrade the Ultrasonic Portable to  the latest firmware version from Anemotracker app.
• Wind direction adjustable damping.
• Velocity Made Good calculations.
•  New derived data: stylish graphs with Means and deviations.
• Configuration from the units of measure: m/s, km/h, Kt.
•  Threshold alarm, direction offset, map mode, etc...


Specifications:
Material: Nylon Polymer
Dimensions: Diameter : 70 mm (2.76 in.), Height : 95 mm (3.74 in.)
Weight : 213 grams (7.10 oz.)
Wind Speed Range : 0.5-25 m/s (1.12 - 56 mph)
Wind Speed Accuracy : ±0.3 m/s at 10 m/s (0.22 mph at 22.4mph)
Threshold: 0.5 m/s (1.12 mph)
Wind Direction Range : 0-359º,
Wind Direction Accuracy : ± 1
Sensors: Ultrasonic transducers ( 4x)
Sample Rate: 1 Hz
Power: 3.3 - 5 DCV
Sensor Outputs: ULP LoRa P2P (up to 3km direct line of sight)
Receiver Output: LoRa P2P (up to 3 km direct line of sight), Bluetooth Low Energy 5.1 (up to 30 m direct line of sight)
Firmware: Upgradable via Bluetooth
Sensor IP Code: IPX8 Protection Grade
Receiver IP Code: IP65
Mounting: 3xM3 base female  tripod thread 3xM4 lateral female thread UNC1/4"-20 3XM4 inferior female tripod thread-UNC1/4"-20
Certifications: FCC, CE

Applications:

• Agriculture: Precision Agriculture/ Spraying/ Fertilizers and Irrigation
• Energy & Industry : Solar / Wind Power / Cranes /Elevators / Gas, oil & Industrial Plants
• Marine: Fishing & Commercial/ Sailing, yachting and watersports/ Marinas and Harbors
• Scientific & Meteorology: Research/ Meteorological monitoring/ Air Quality and environmental/ Smart Cities
• Ballistics: Long Range Shooting

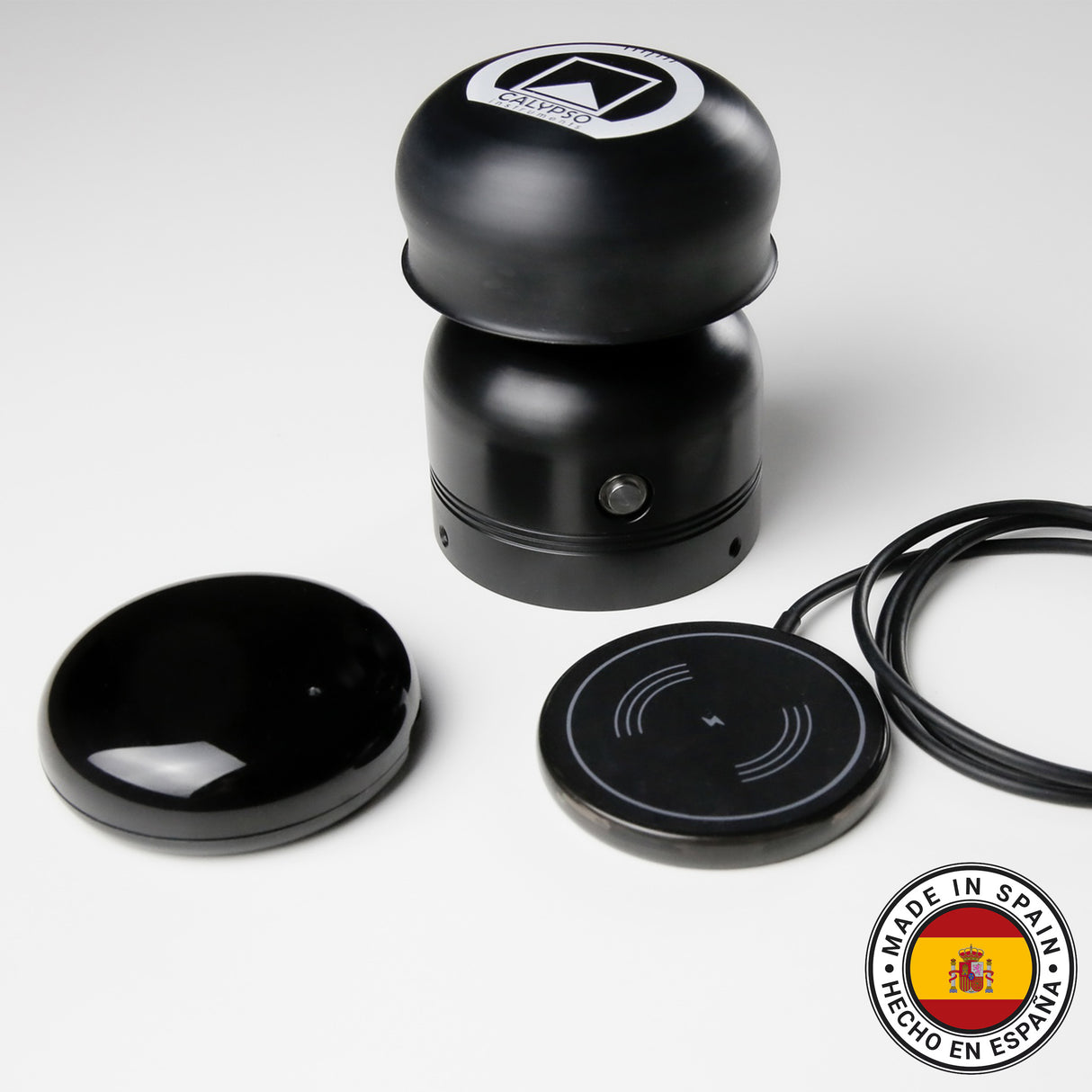

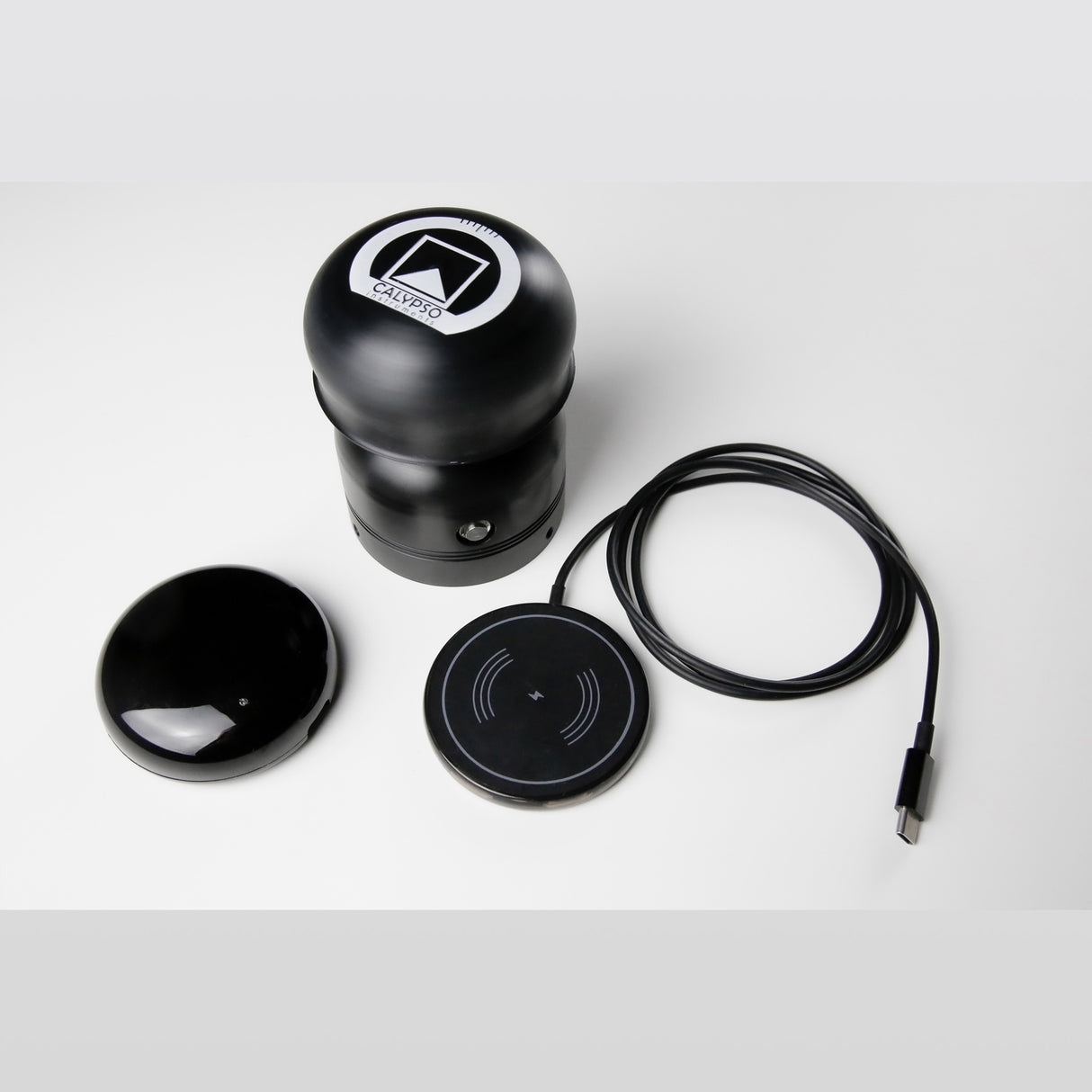

Includes:

• Ultrasonic ULP LoRa Wind Instrument
• LoRa Receiver
• Wireless USB QI Charging Pad
• Serial number reference on the side of the packaging.
• A quick user guide on the back of the packaging

Downloads:
Calypso ULP LORA + BLE Receiver Data Sheet
Calypso ULP LORA + BLE Receiver Instruction Manual
