Description:

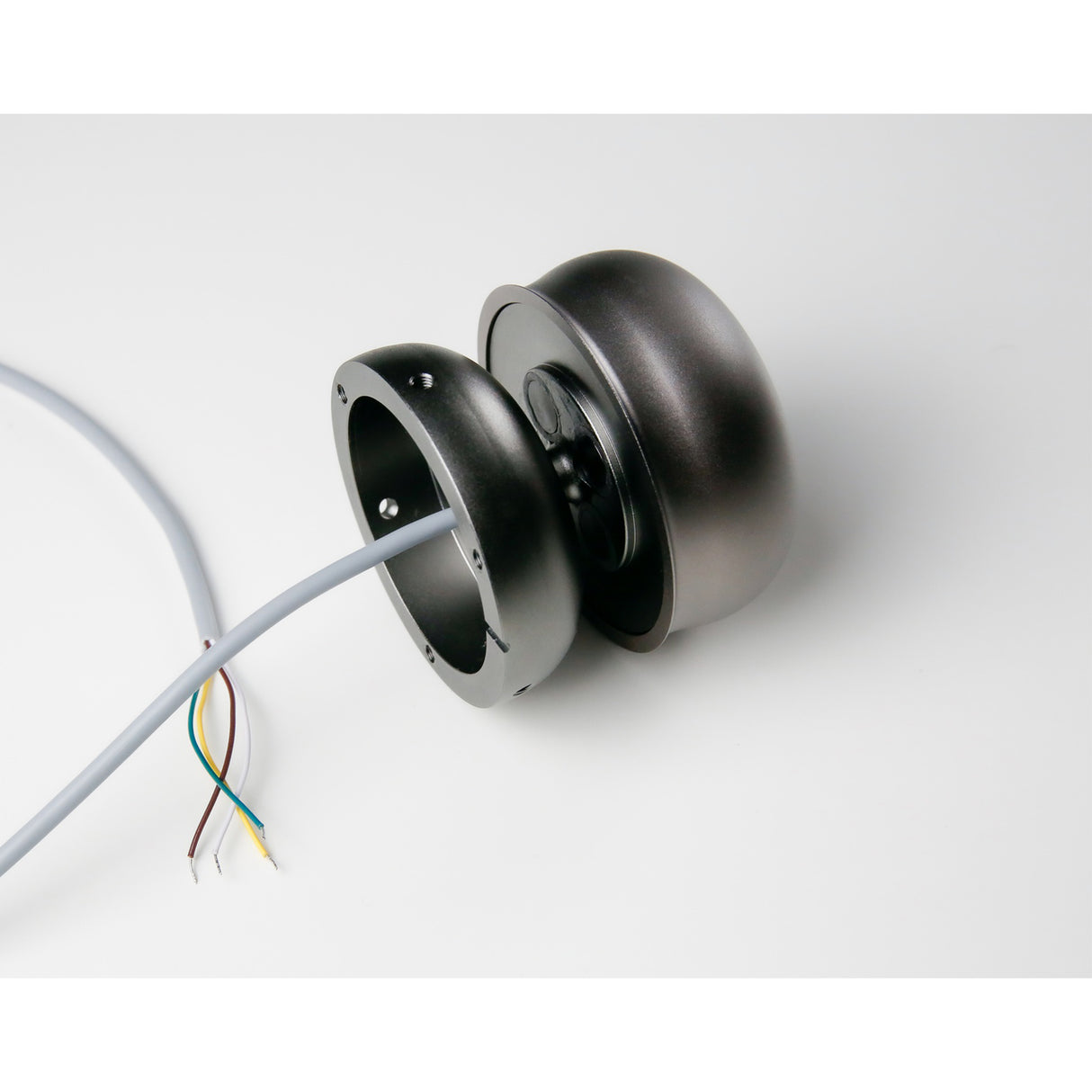

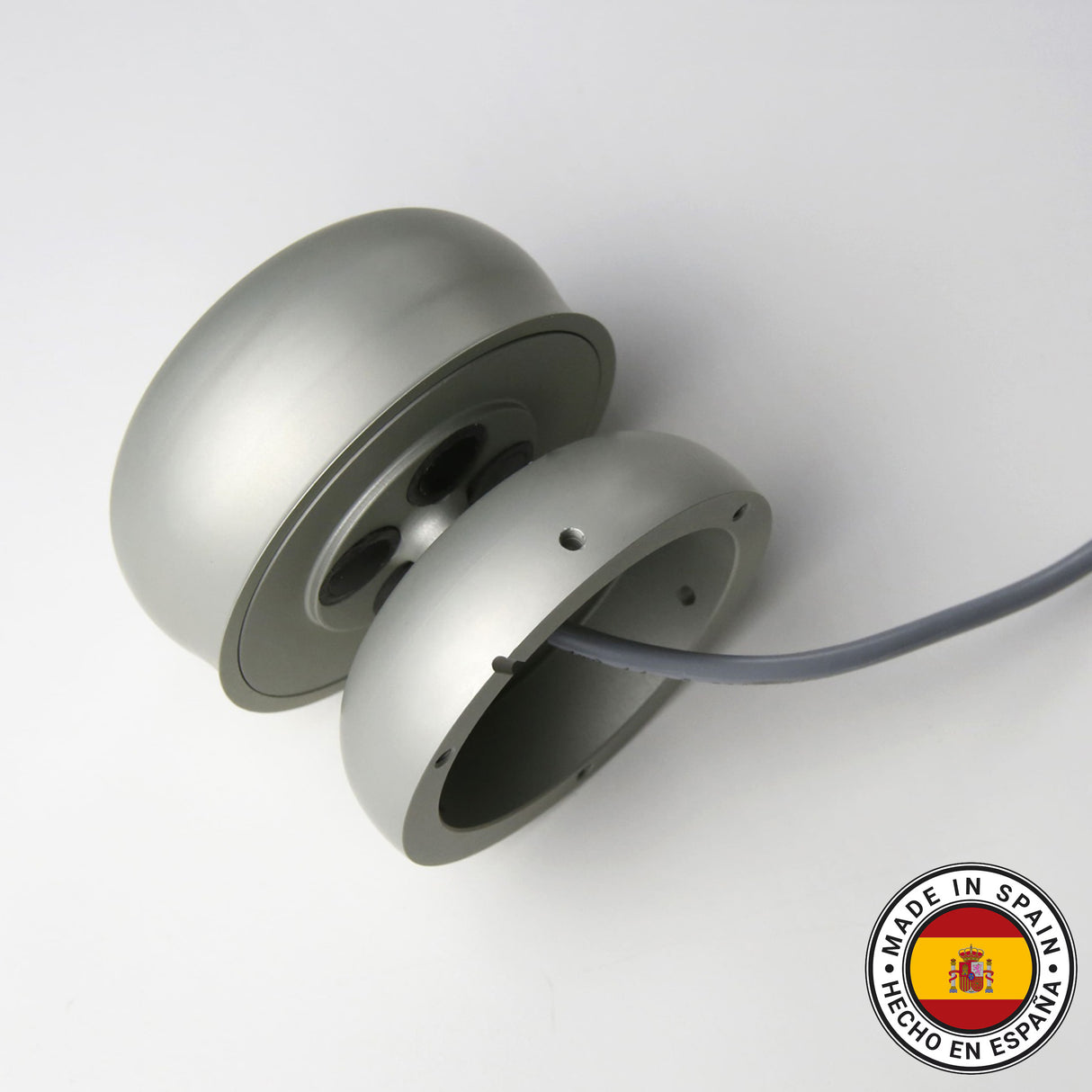

The Calypso ULP SUMMIT is a compact, wired ultrasonic wind meter, free of any moving parts that measures both wind speed and direction, allowing data viewing and logging through a direct RS485 (NMEA0183) / MODBUS output wired connection. Its size makes it an ideal standalone wind meter of great value for a wide range of industries and applications.

Measurement Parameters

• Apparent wind speed and direction.
• Real wind speed and direction (if used on a vehicle or boat).

Features

• Both shape and firmware have been enhanced for an improved rain performance, being this point key for static applications such as weather stations.

• Mechanical design has been revamped making the unit more robust and dependable.

Specifications:
Material: Anodized Machined Aluminum (Gray)
Dimensions: Diameter : 70 mm (2.76 in.), Height : 65 mm (2.56 in.)
Weight : 340 grams (12 oz.)
Wind Speed Range : 0.5-45 m/s (1.12 - 100 mph) // 0.5-60 m/s (1.12-134.22mph)
Wind Speed Accuracy : ±0.1 m/s at 10 m/s ( 0.22 mph at 22.40 mph)
Wind Direction Range : 0-359º,
Wind Direction Accuracy : ± 1
Sensors: Ultrasonic transducers ( 4x)
Sample Rate: 0.1 Hz to 10Hz (configurable)
Power: 3.3 - 18 DCV
Output: RS485 / MODBUS RTU (Poll or Stream)
Firmware: Upgradable. Configurable via USB
IP Code: IPX8 Protection Grade
Mounting: 3xM4 lateral female thread screw, 3xM4 inferior female thread screw
Certifications: FCC, CE

Applications:

• Agriculture: Precision Agriculture/ Spraying/ Fertilizers and Irrigation
• Energy & Industry : Solar / Wind Power / Cranes /Elevators / Gas, oil & Industrial Plants
• Marine: Fishing & Comercial/ Sailing, yacthing and watersports/ Marinas and Harbors
• Scientific & Meteorology: Research/ Meteorological monitoring/ Air Quality and environmental/ Smart Cities
• Firefighing: Wildfire, urban firefighting
• Ballistics: Long Range Shooting
• Drones and aviation: Airports/ UAV
• Outdoors

Includes:

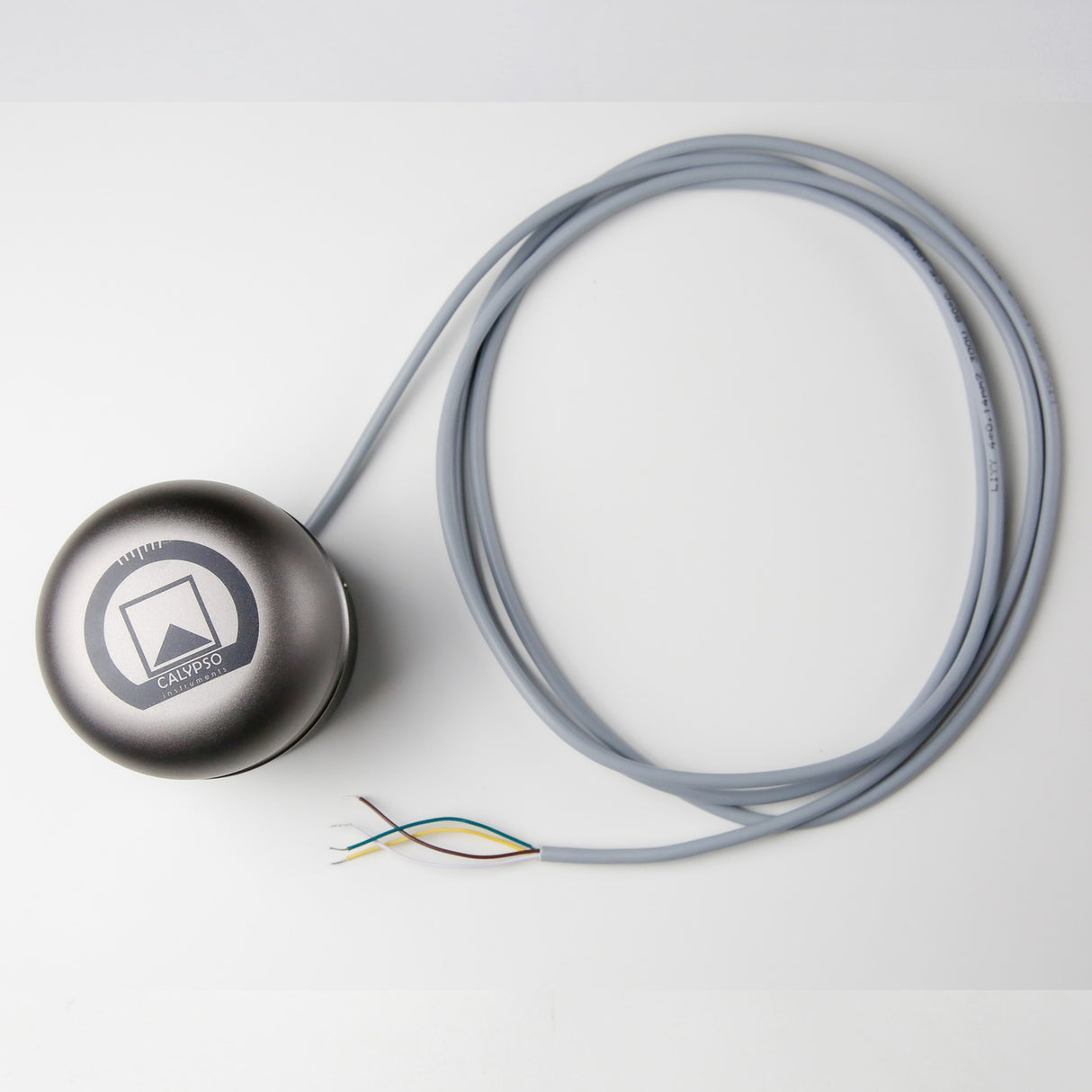

• Ultrasonic ULP SUMMIT Wind Instrument plus 2 meters (6.5 ft) cable for connection*
• Serial number reference on the side of the packaging.
• A quick user guide on the back of the packaging
• M4 headless screw (x6)
• M4 screw (x3)

Downloads:
Calypso ULP SUMMIT Ultrasonic Anemometer 45m/s Data Sheet
Calypso ULP SUMMIT Ultrasonic Anemometer 60m/s Data Sheet
Calypso ULP SUMMIT Ultrasonic Anemometer Instruction Manual
