Description:

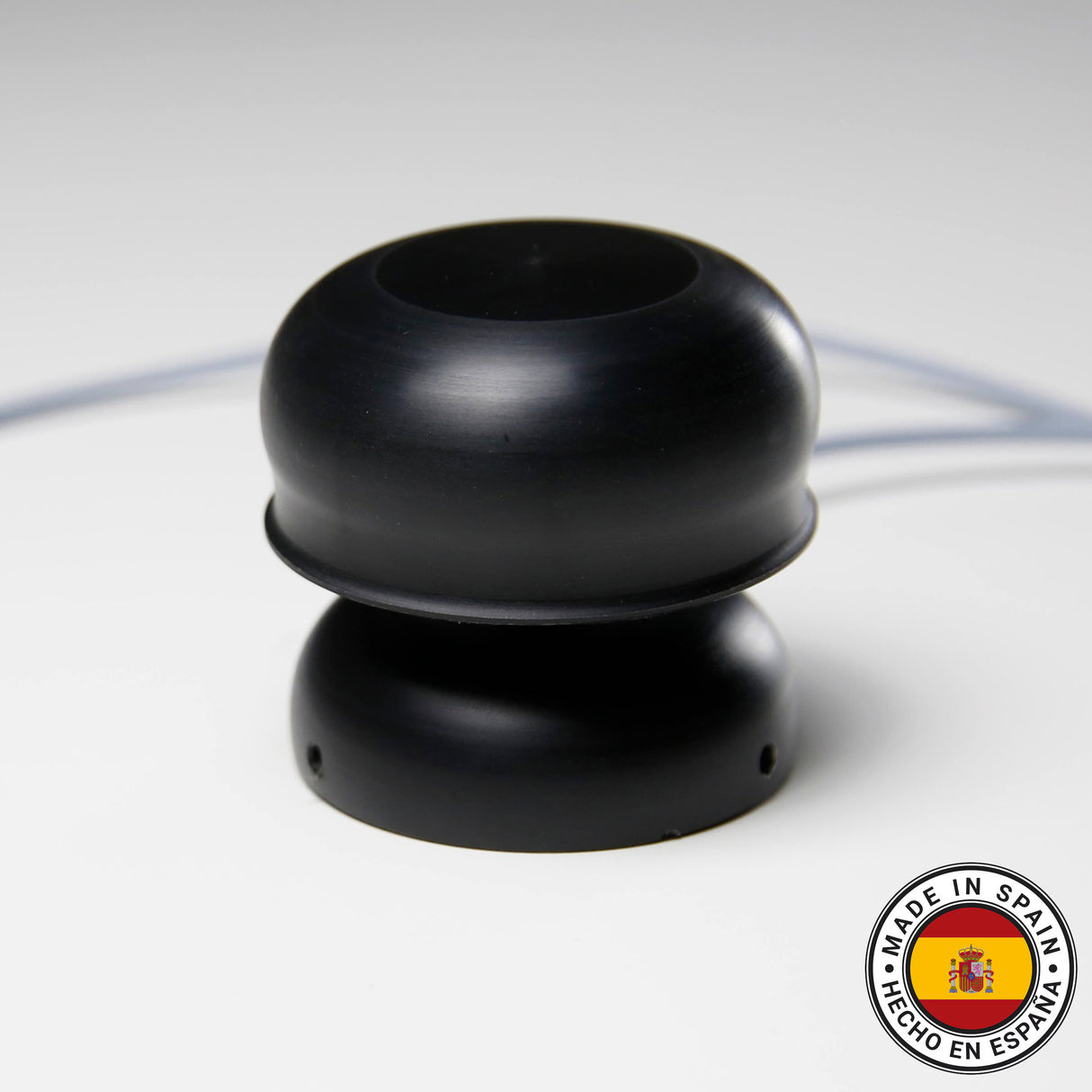

The Calypso ULP Standard is a compact, wired ultrasonic wind meter, free of any moving parts that measures both wind speed and direction, allowing data viewing and logging through a direct wired connection. Its size makes it an ideal standalone wind meter of great value for a wide range of industries and applications.

Measurement Parameters

• Apparent wind speed and direction.
• Real wind speed and direction (if used on a vehicle or boat).

Features

• Both shape and firmware have been enhanced for an improved rain performance, being this point key for static applications such as weather stations.

• Mechanical design has been revamped making the unit more robust and dependable.

Specifications:
Material: Machined Engineering Plastic (Black)
Dimensions: Diameter : 70 mm (2.76 in.), Height : 65 mm (2.56 in.)
Weight : 210 grams (7.4 oz.)
Wind Speed Range : 0.5-45 m/s (1.12 - 100 mph) // 0.5-60 m/s (1.12-134.22mph)
Wind Speed Accuracy : ±0.3 m/s at 10 m/s & 3% from 10-45 m/s
Wind Direction Range : 0-359º,
Wind Direction Accuracy : ± 1
Sensors: Ultrasonic transducers ( 4x)
Sample Rate: 0.1 Hz to 20Hz (depending on filter mode)
Power: 3.3 - 18 DCV
Outputs: RS485 ( NMEA 0183 Poll or Stream), RS485 MODBUS (NMEA 0183 Poll or Stream), UART (NMEA 0183) Poll / Stream, Analog output 4-20 mA SDI-12
Firmware: Upgradable. Configurable via USB
IP Code: IPX8 Protection Grade

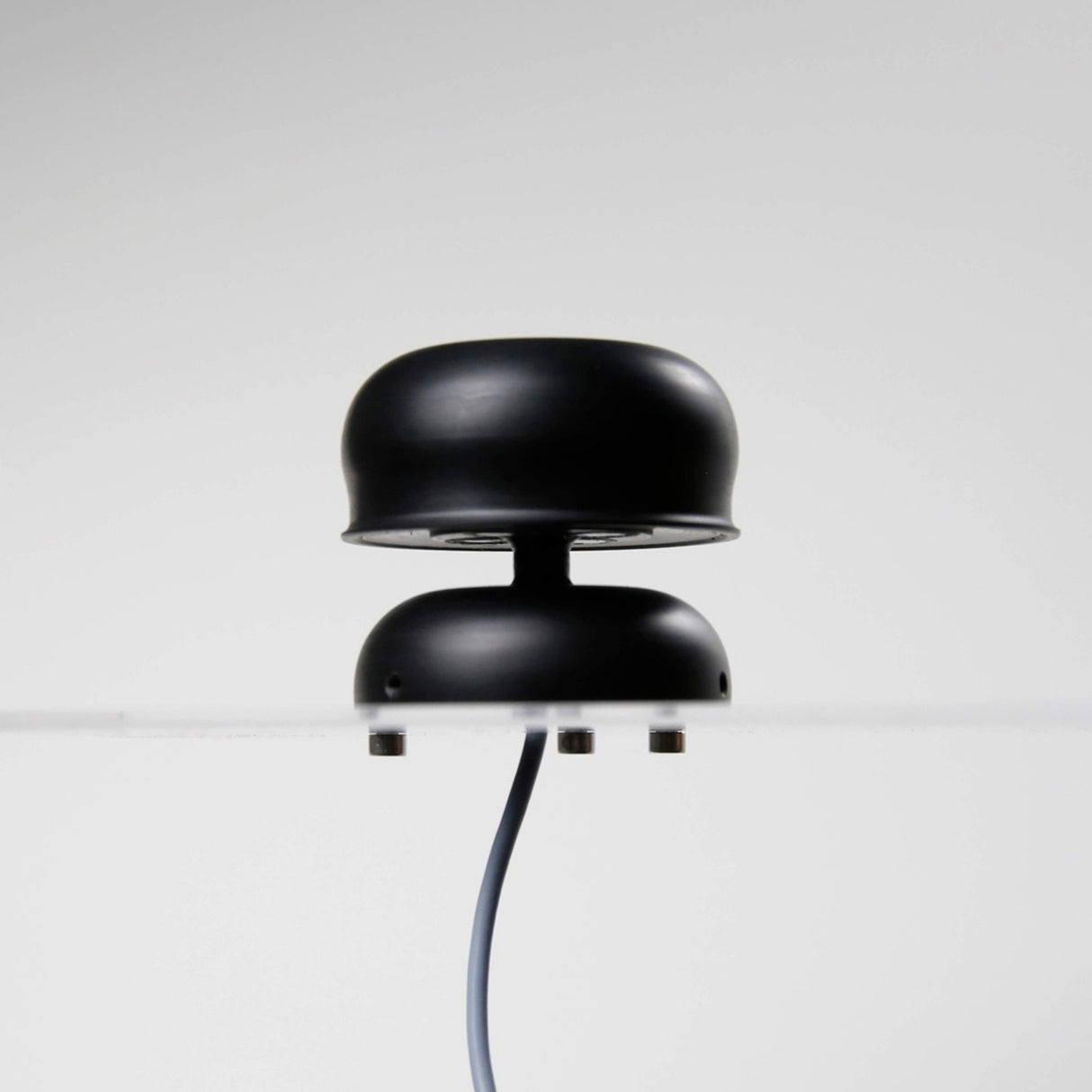

Mounting: 3xM4 lateral female thread screw, 3xM4 inferior female thread screw
Certifications: FCC, CE

Applications:

• Agriculture: Precision Agriculture/ Spraying/ Fertilizers and Irrigation
• Energy & Industry : Solar / Wind Power / Cranes /Elevators / Gas, oil & Industrial Plants
• Marine: Fishing & Commercial/ Sailing, yachting and watersports/ Marinas and Harbors
• Scientific & Meteorology: Research/ Meteorological monitoring/ Air Quality and environmental/ Smart Cities
• Firefighting: Wildfire, urban firefighting
• Ballistics: Long Range Shooting
• Drones and aviation: Airports/ UAV
• Outdoors

Includes:

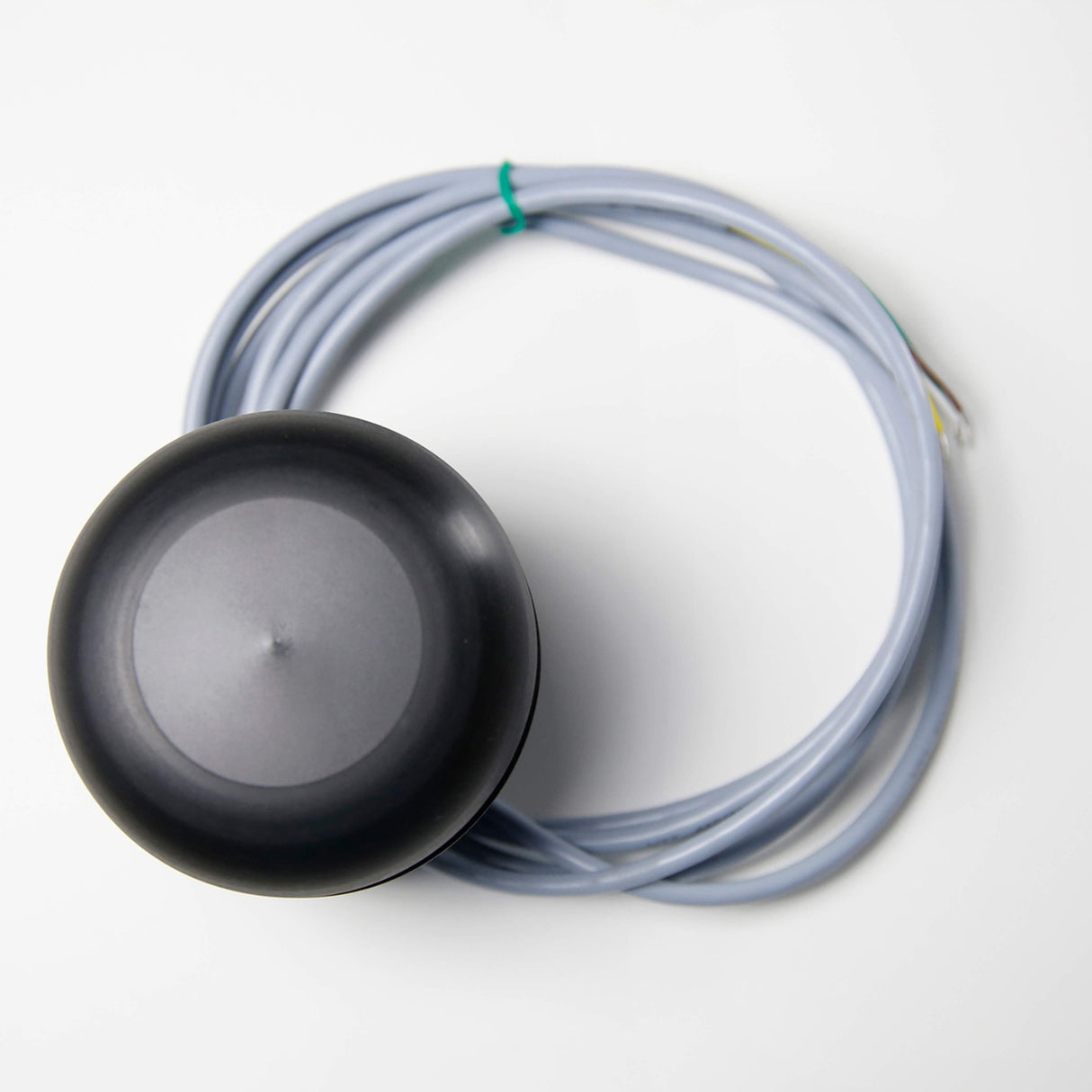

• Ultrasonic ULP Standard Wind Instrument plus 2 meters (6.5 ft) cable for connection

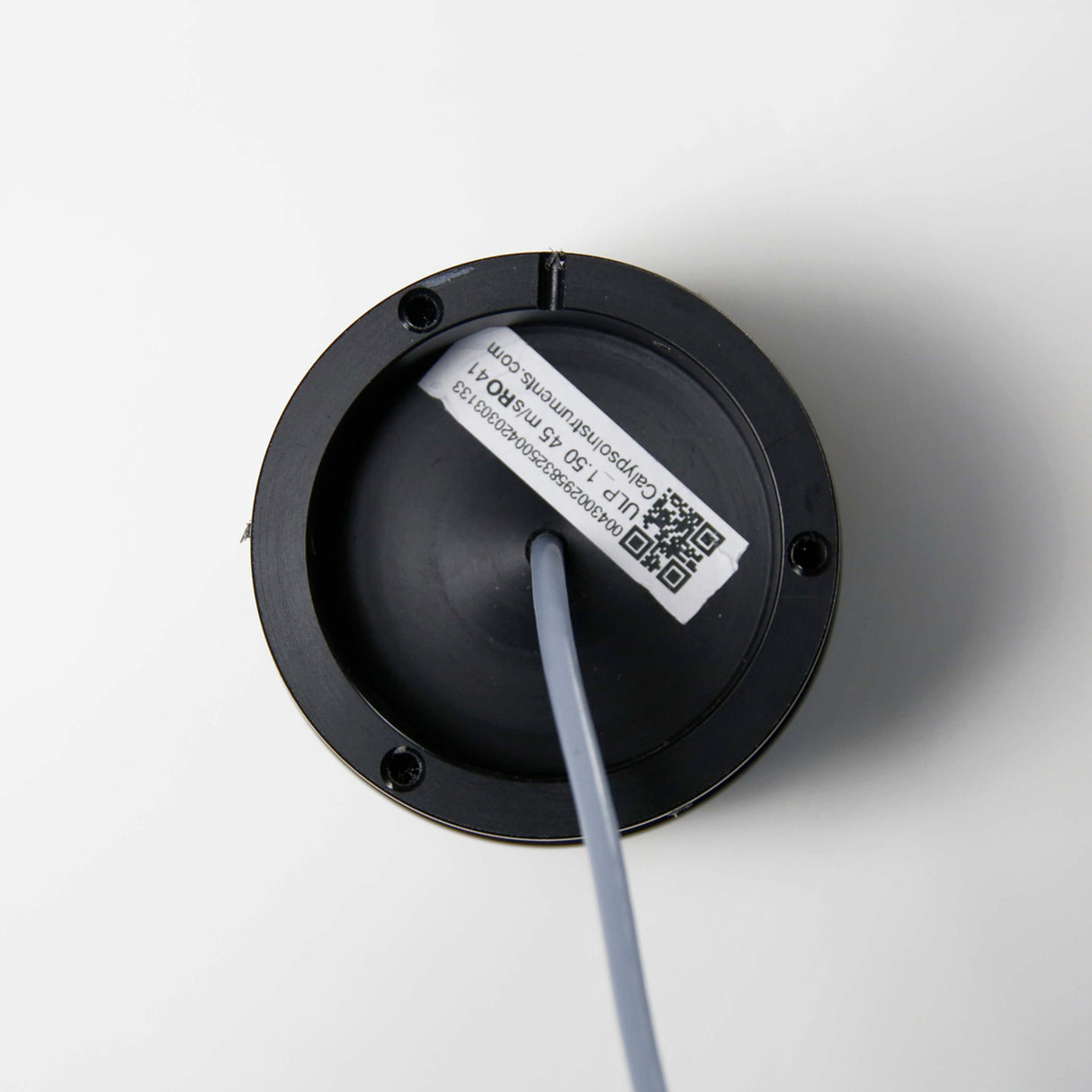

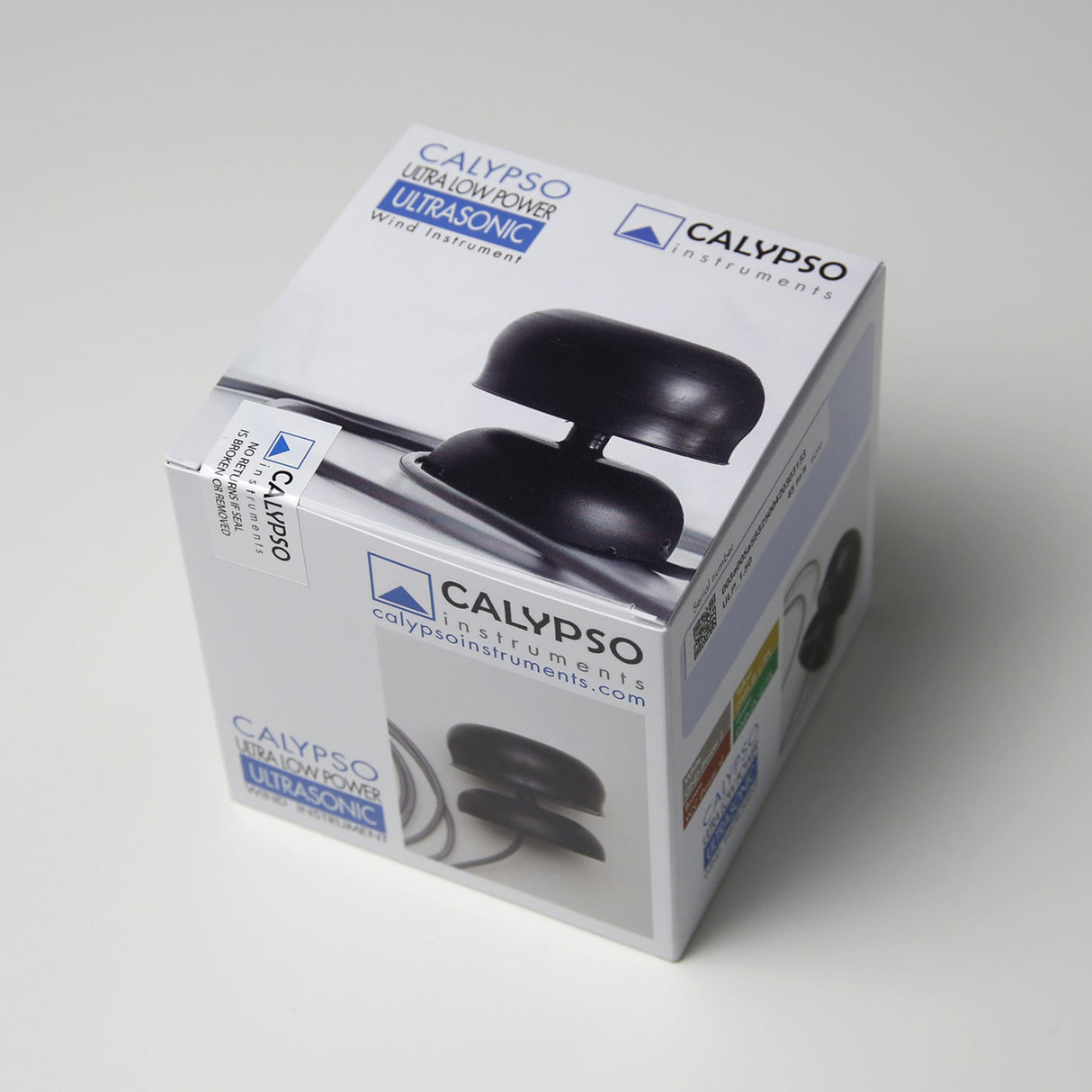

• Serial number reference on the side of the packaging.
• A quick user guide on the back of the packaging
• M4 headless screw (x6)
• M4 screw (x3)

Downloads:
Calypso ULP Standard Ultrasonic Anemometer 45m/s Data Sheet
Calypso ULP Standard Ultrasonic Anemometer 60m/s Data Sheet
Calypso ULP Standard Ultrasonic Anemometer Instruction Manual
