Description:
The Calypso ULP PRO is a compact, wired ultrasonic wind meter, free of any moving parts that measures both wind speed and direction, allowing data viewing and logging through a direct wired connection. Its size makes it an ideal standalone wind meter of great value for a wide range of industries and applications.

Measurement Parameters

• Apparent wind speed and direction.
• Real wind speed and direction (if used on a vehicle or boat).

Features

• Both shape and firmware have been enhanced for an improved rain performance, being this point key for static applications such as weather stations.

• Mechanical design has been revamped making the unit more robust and dependable.

Specifications:
Material: Injection Molded Plastic (White)
Dimensions: Diameter : 68 mm (2.68 in.), Height : 65 mm (2.56 in.)
Weight : 200 grams (7.05 oz.)
Wind Speed Range : 0.5-45 m/s (1.12 - 100 mph)
Wind Speed Accuracy : ±0.1 m/s at 10 m/s (0.22 mph at 22.4mph)
Wind Direction Range : 0-359º,
Wind Direction Accuracy : ± 1

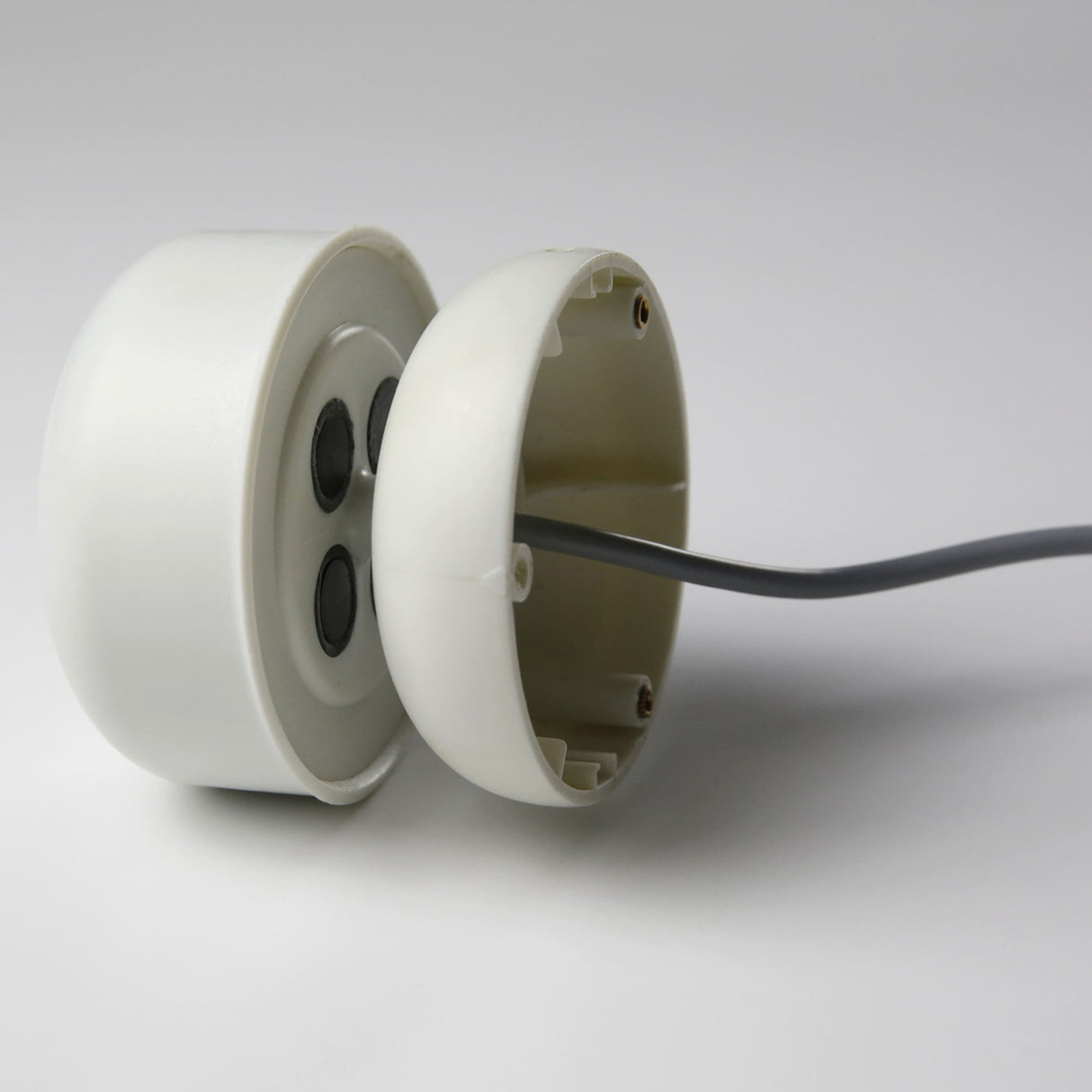

Sensors: Ultrasonic transducers ( 4x)
Sample Rate: 1 Hz to 10Hz (configurable)
Power: 3.3 - 24 DCV
Outputs: RS485 ( NMEA 0183 Poll or Stream), RS485 (MODBUS), UART (NMEA 0183) Poll / Stream
Firmware: Upgradable. Configurable via USB
IP Code: IPX8 Protection Grade

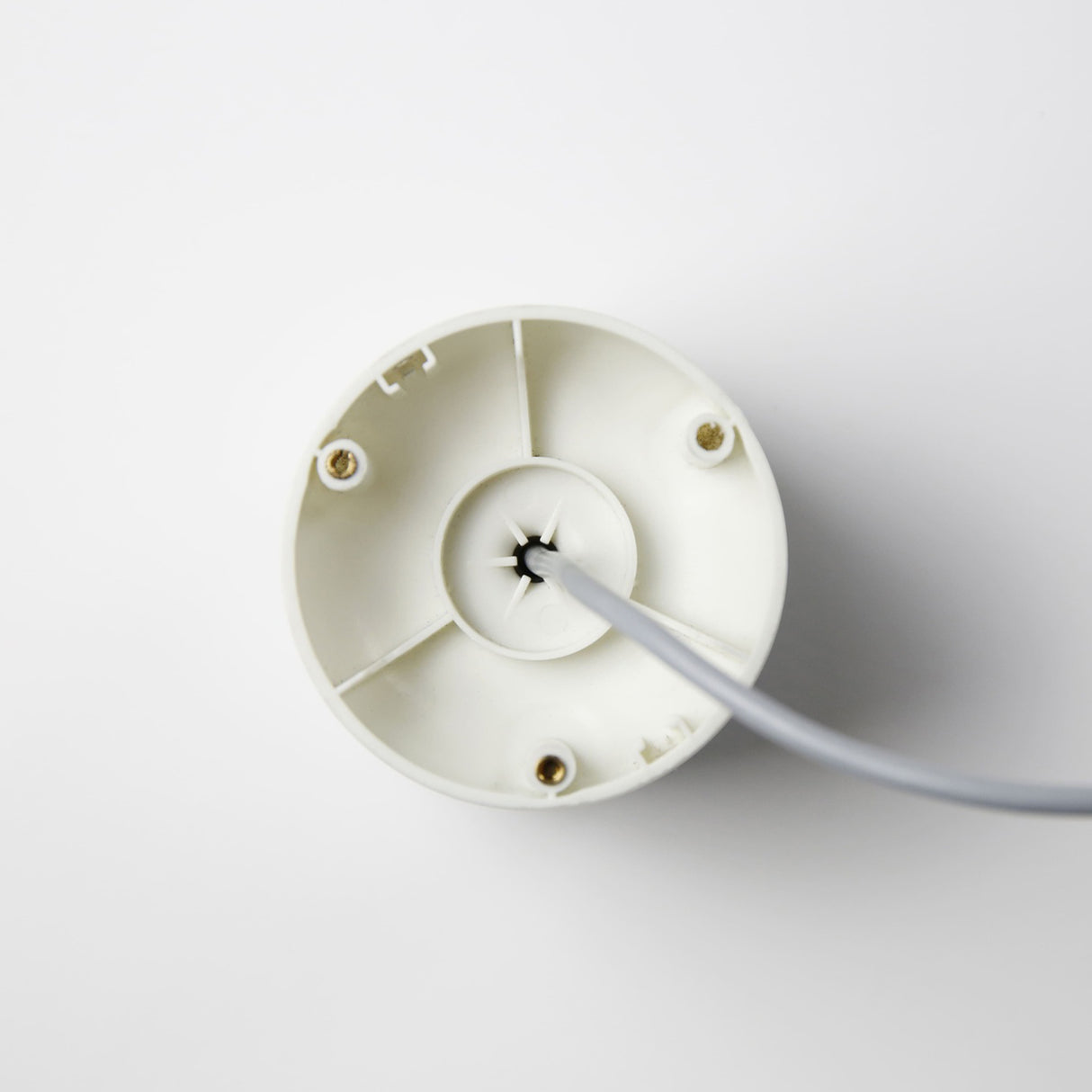

Mounting: 2xM3 lateral female tripod thread (UNC1/4''-20) , 3xM3 inferior lateral female tripod thread (UNC1/4''-20)
Certifications: FCC, CE

Applications:

• Agriculture: Precision Agriculture/ Spraying/ Fertilizers and Irrigation
• Energy & Industry : Solar / Wind Power / Cranes /Elevators / Gas, oil & Industrial Plants
• Marine: Fishing & Commercial/ Sailing, yachting and watersports/ Marinas and Harbors
• Scientific & Meteorology: Research/ Meteorological monitoring/ Air Quality and environmental/ Smart Cities

Includes:

• Ultrasonic ULP Pro Wind Instrument plus 2 meters (6.5 ft) cable for connection
• Serial number reference on the side of the packaging.
• A quick user guide on the back of the packaging
• M3 headless screw (x7)

Downloads:
Calypso ULP Pro Ultrasonic Anemometer Data Sheet
Calypso ULP Pro Ultrasonic Anemometer Instruction Manual
