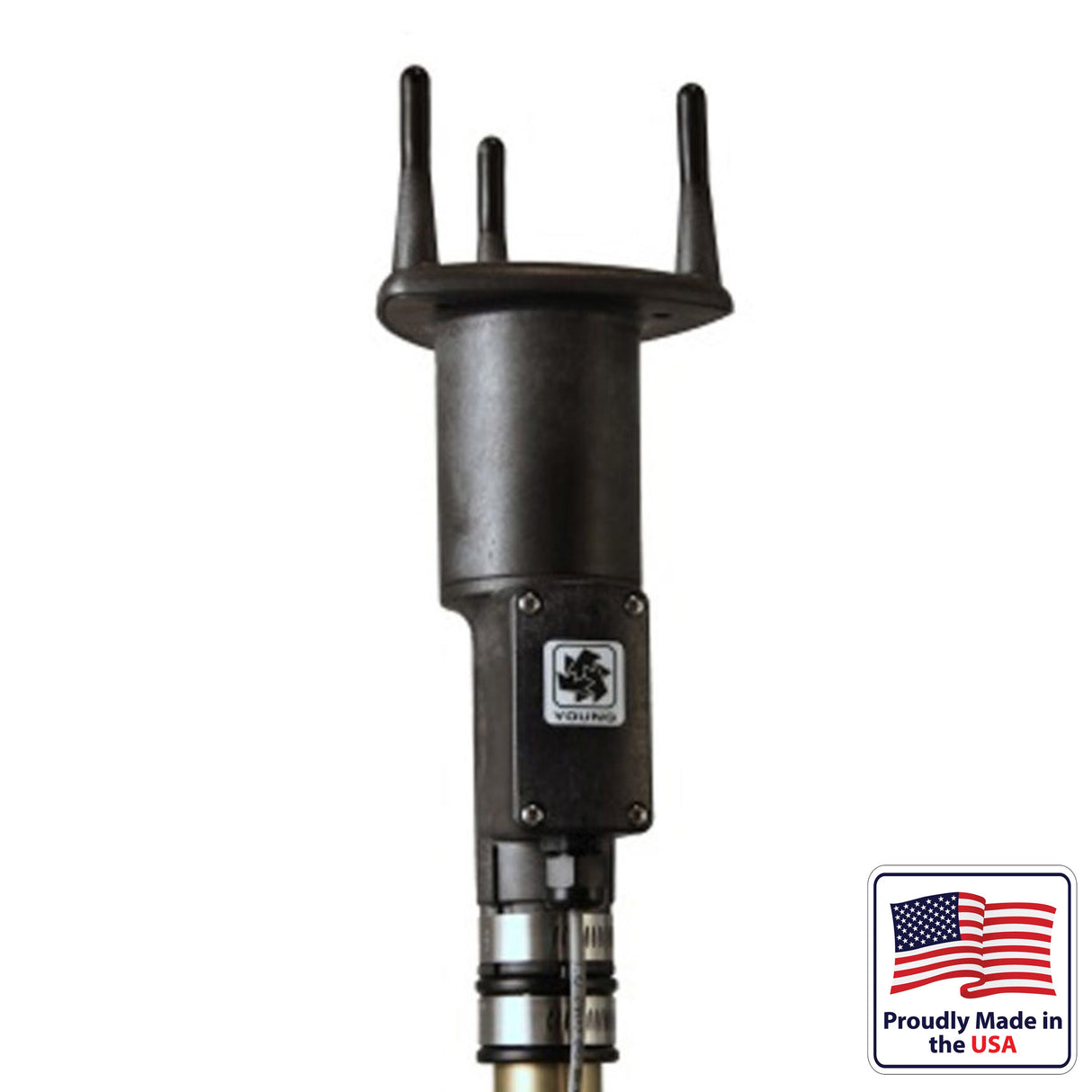

R.M. Young 86004 Heated Ultrasonic Anemometer, Serial and Analog Outputs

                  Ships in 5-10 Days
Couldn't load pickup availability
The YOUNG Model 86004 Ultrasonic Anemometer measures horizontal wind speed and direction. This lightweight and compact sensor features durable, corrosion-resistant construction with sensitive ultrasonic transducers secured in a streamlined molded frame. Heating elements are thermostatically controlled to activate under low temperature conditions. Each sensor is fully wind tunnel tested and calibrated to provide accurate wind measurement over a wide operating range. The standard sensor features RS-232 and RS-485 serial outputs in a variety of formats. Analog voltage outputs are provided for wind speed and wind direction. 4-20 mA current signals are available for each channel and are well suited for long cable runs or for industrial settings where noise immunity is important.* The sensor mounts on a standard 1-inch IPS pipe. A mounting orientation ring is included that engages with the base of the sensor to retain orientation when the sensor is removed for maintenance. Terminations are made in a junction box at the base of the sensor by small clamp-style connectors (no special connectors are required).
| Range: | Wind speed: 0-70 m/s |
|---|---|
| Accuracy: | Wind speed: ± 2% ± 0.1m/s (30 m/s), ± 3% (75 m/s) |
| Resolution: | Wind speed: 0.01 m/s |
| Threshold: | <0.01 m/s |
| Response Time: | <0.25 seconds |
| Analog Outputs: | 0-5000 mV or 4-20 mA |
| Serial Outputs: | RS-232 or RS-485, SDI-12 (Model 86004-SDI only) |
| Output Update Rate: | 0.1 to 20 Hz |
| Power Requirement: | 24 VDC, 2.5 A |
| Operating Temperature: | -40 to 60°C |
| Protection Class: | IP65 |
| Dimensions: | Overall height 28.5 cm (11.2 in) |
| Weight: | 0.4 kg (0.9 lb) |
| Shipping Weight: | 1.6 kg (3.5 lb) |
