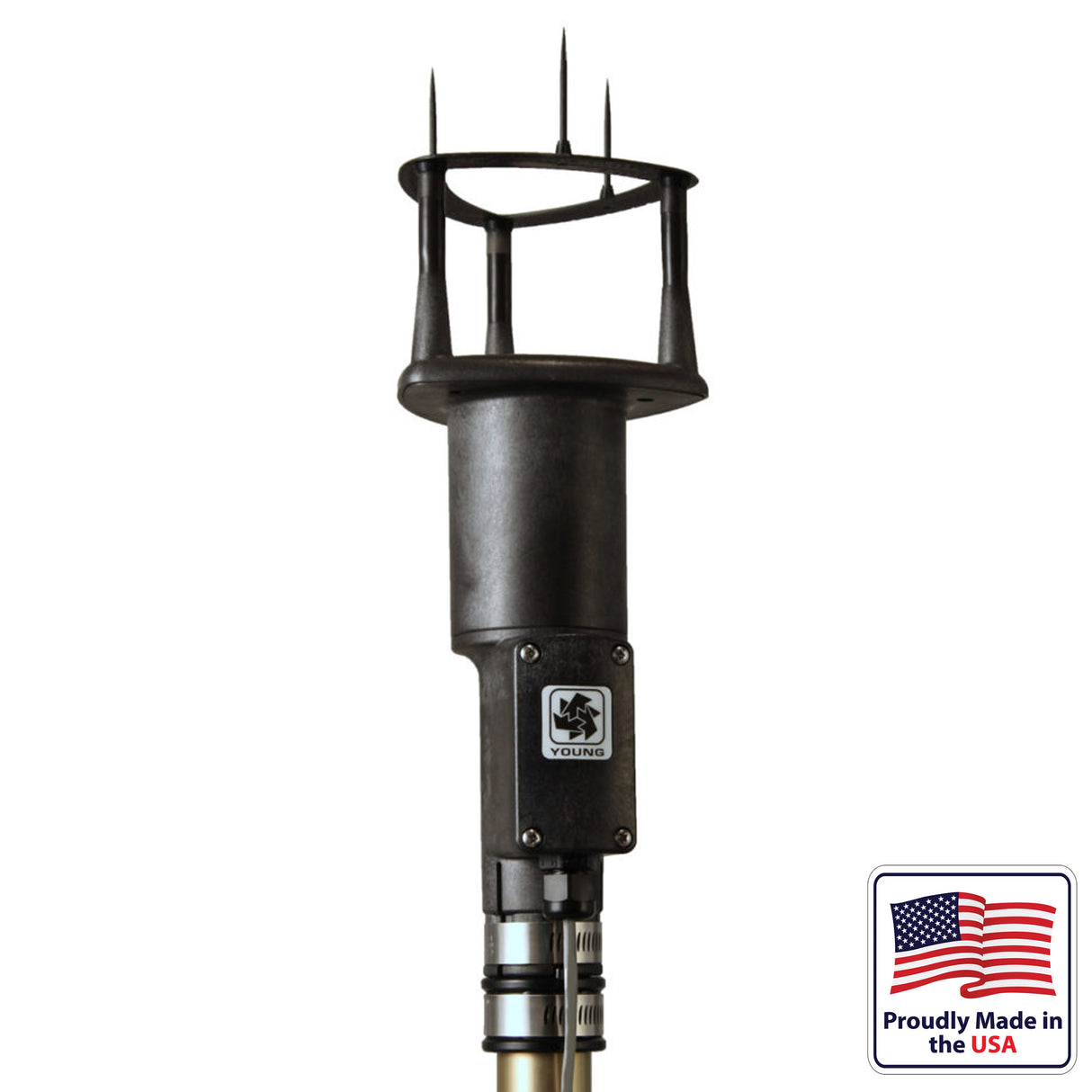

R.M. Young 86106 Marine Ultrasonic Anemometer, Serial and Analog Output
                  Ships in 5-10 Days
Couldn't load pickup availability
The YOUNG Model 86106 Ultrasonic Anemometer measures horizontal wind speed and direction. This lightweight and compact sensor features durable, corrosion-resistant construction with sensitive ultrasonic transducers secured in a streamlined molded frame. Each sensor is fully wind tunnel tested and calibrated to provide accurate wind measurement over a wide operating range. The sensor is preconfigured to output NMEA serial data (RS-485, 4800 baud) although RS-232 and a variety of output formats are also available. Analog voltage outputs are provided for wind speed and wind direction. 4-20 mA current signals are available for each channel and are well suited for long cable runs or for industrial settings where noise immunity is important.* The sensor mounts on a standard 1-inch IPS pipe. A mounting orientation ring is included that engages with the base of the sensor to retain orientation when the sensor is removed for maintenance. Terminations are made in a junction box at the base of the sensor by small clamp-style connectors (no special connectors are required).
| Range: |
 Wind speed: 0-75 m/s (168 mph)  |
|---|---|
| Accuracy: |
 Wind speed: ± 2% ± 0.1m/s (30 m/s), ± 3% (75 m/s)  |
| Resolution: |
 Wind speed: 0.01 m/s  |
| Threshold: |
 <0.01 m/s  |
| Response Time: |
 <0.25 seconds  |
| Analog Outputs: |
 0-5000 mV or 4-20 mA  |
| Serial Outputs: |
 RS-232 or RS-485, SDI-12 (Model 86000-SDI only)  |
| Output Update Rate: |
 0.1 to 20 Hz  |
| Power Requirement: |
 10 to 30 VDC, <20 mA typical  |
| Operating Temperature: |
 -40 to 60°C  |
| Protection Class: |
 IP65  |
| Dimensions: |
 Overall height without bird pikes: 28.5 cm (11.2 in)  |
| Weight: |
 0.4 kg (0.9 lb)  |
| Shipping Weight: |
 1.6 kg (3.5 lb)  |
