R.M. Young 92000 ResponseONE Weather Transmitter

R.M. Young  |  SKU: 92000
$2,36410

Ships in 5-10 Days


Need help determining the right product for you? Give our team a call at 609-844-0055.

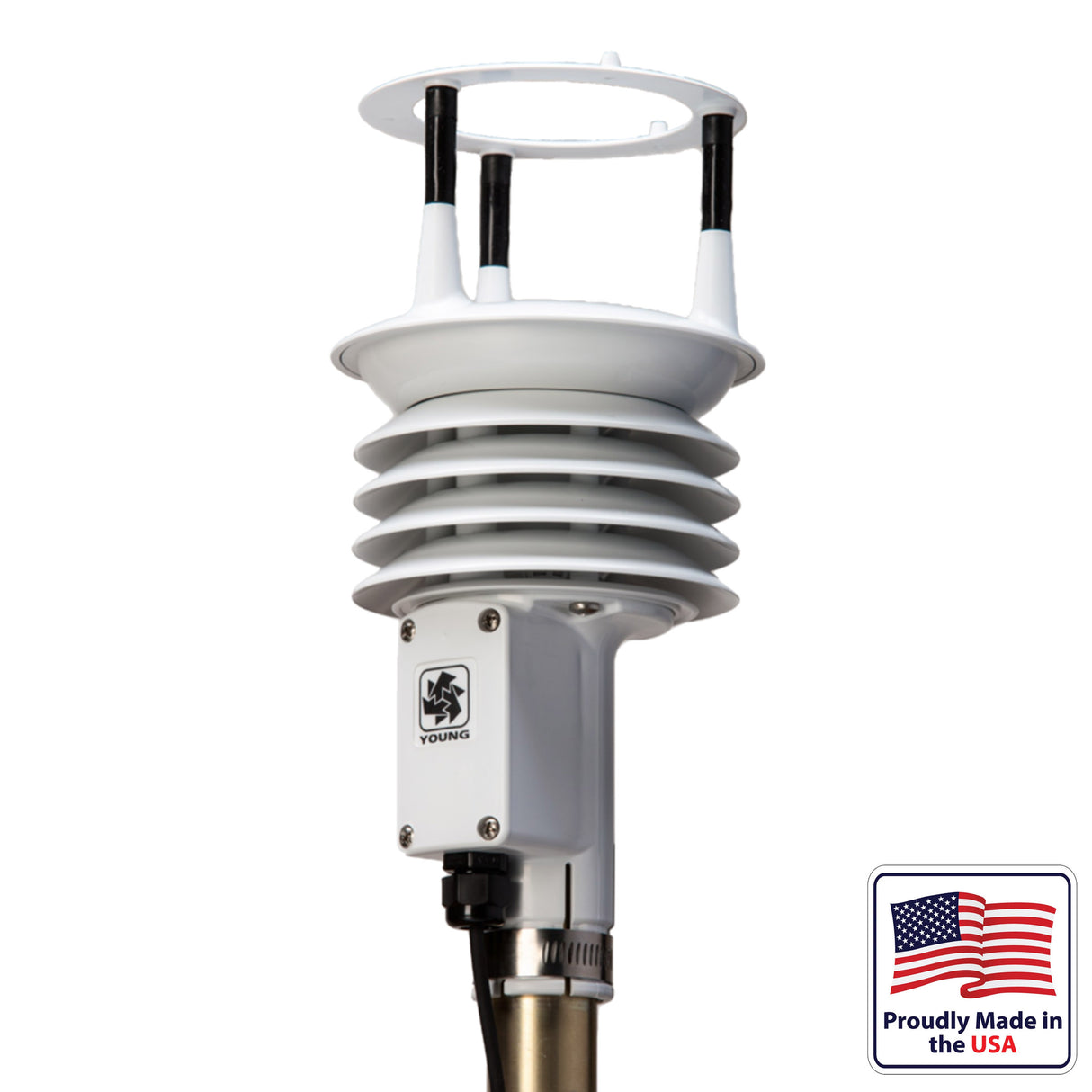

The YOUNG Model 92000 ResponseONE™ Weather Transmitter measures four key meteorological variables with one compact instrument.  It is ideal for many weather monitoring applications requiring accurate and reliable measurements.  Ultrasonic wind speed and direction, atmospheric pressure, humidity and temperature sensors are carefully integrated into an enclosure optimized for durability, airflow and mitigation of solar radiation effects.  Terminals are provided for connection of an optional tipping bucket rain gauge (sold separately).  Each sensor is fully wind tunnel tested and calibrated to provide accurate wind measurement over a wide operating range.  Standard serial output formats include SDI-12, NMEA, and ASCII text.  Output may be continuous or polled to conserve power.  Standard RS-232 or RS-485 serial formats enable direct integration with YOUNG displays, marine NMEA systems, data loggers or other compatible serial devices.  The sensor mounts on a standard 1-inch IPS pipe.  A mounting orientation ring is included that engages with the base of the sensor to retain orientation when the sensor is removed for maintenance.  Terminations are made in a junction box at the base of the sensor by small clamp-style connectors (no special connectors are required).

Wind Speed:

Range: 0–70 m/s (156mph)
Resolution: 0.01 m/s
Accuracy:  ±2% or 0.3 m/s (0–30m/s), ±3% (30 – 70 m/s)

Wind Direction:

Azimuth Range: 0-360°
Resolution: 0.1°
Accuracy: ±2°

Temperature:

Range: -40 to +60°C
Resolution: 0.1°C
Accuracy: ±0.3°C (-20 to +50°C), ±0.7°C (other)

Relative Humidity:

Range: 0–100%
Resolution: 0.1%
Accuracy: ±2% (5-95%)

Atmospheric Pressure:

Range: 500–1100 hPa
Resolution: 0.1 hPa
Accuracy: ±0.3 hPa (0 to +60°C), ±1.0 hPa (-40 to 0°C)

Electronic Compass:

Range: 0–360°
Resolution: 0.1°
Accuracy: ±2°

Serial Output (selectable):

Interface: RS-232, RS-485/422, SDI-12
Formats: NMEA, SDI-12, ASCII (polled or continuous)
Baud Rates: 1200, 4800, 9600, 19200 and 38400

Power Requirement:

Voltage: 10–30 VDC
Current: 7 mA @ 12 VDC typical, 80 mA max

EMC Compliance:

FCC Class A digital device, IEC standard 61326-1

Operating Temperature:

-40 to +60°C

Protection Class:

IP65

Removable Bird Spikes:

Included

Dimensions:

Overall height: 28.3 cm (11.1 in)
Diameter: 13.5 cm (5.3 in)
Mounting: 34 mm (1.34 in) diameter (standard 1 inch pipe)

Weight:

0.7 kg (1.5lb)

Shipping Weight:

1.6 kg (3.5lb)
