R. M. Young 05108 Heavy Duty Wind Monitor-HD

R.M. Young  |  SKU: 05108
$1,38600

Ships in 5-10 Days


Need help determining the right product for you? Give our team a call at 609-844-0055.

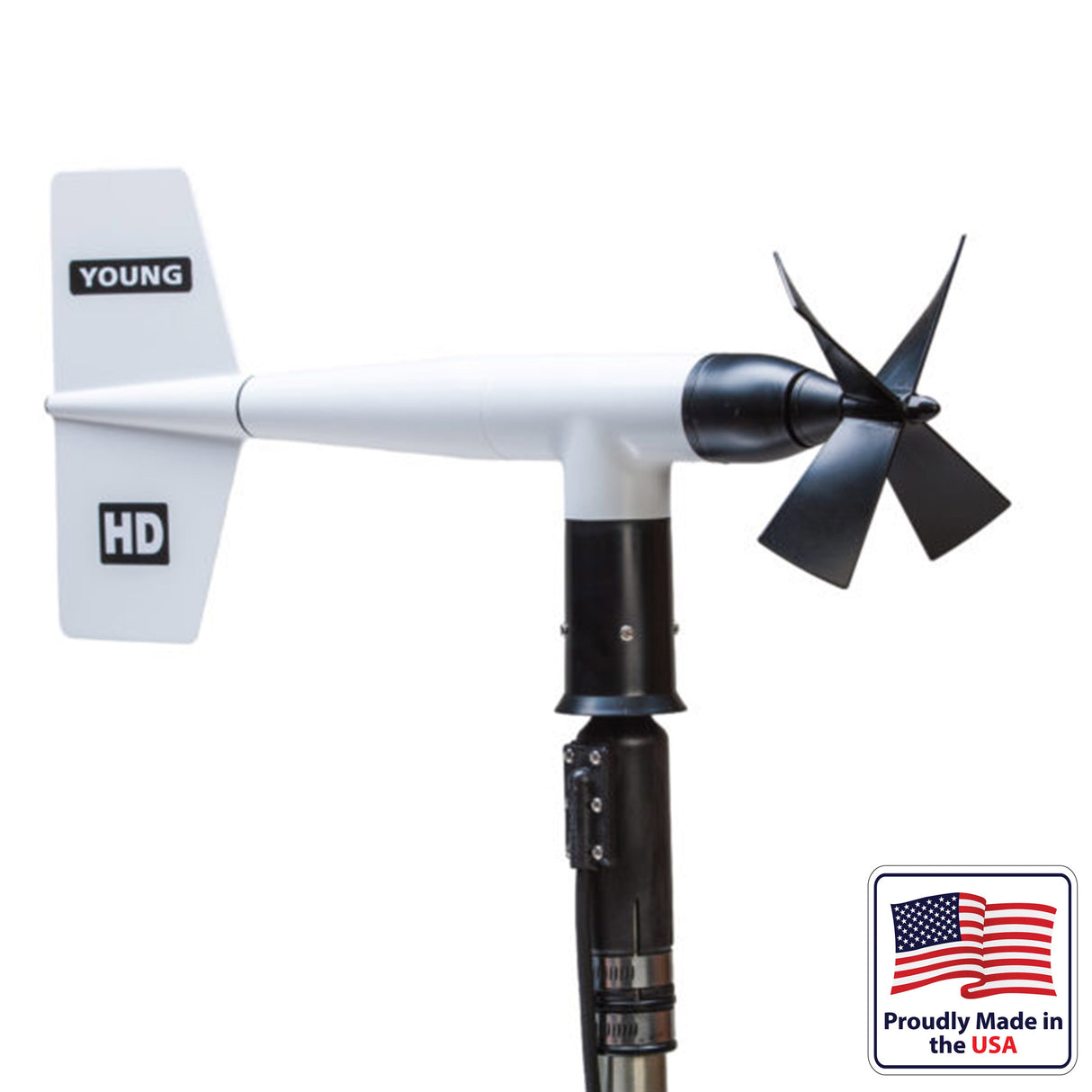

The YOUNG Model 05108 Wind Monitor-HD measures horizontal wind speed and direction.  This sensor has many of the same features as Model 05106, including long-lasting, corrosion resistant, ceramic bearings and a ¼ inch diameter propeller shaft.  It features a high pitch propeller that will extend bearing longevity due to its lower rotation rate at like wind speeds.  The direct output for wind speed is an AC sine wave and direction is a precision potentiometer.  The sensor mounts on a standard 1-inch IPS pipe.  A mounting orientation ring is included. The Wind Monitor-HD has important features that greatly extend the service life of this popular sensor. It promises improved survivability for the most severe wind measuring applications.

Specifications

Range:
Wind speed: 0-100 m/s (224 mph)
Azimuth: 360° mechanical, 355° electrical (5° open)

Accuracy:
Wind speed: ± 0.3 m/s (0.6 mph) or 1% of reading
Wind direction: ± 3°

Threshold: *
Propeller: 1.0 m/s (2.2 mph)
Vane: 1.0 m/s (2.4 mph)

Dynamic Response: *
Propeller distance constant (63% recovery): 2.7 m (8.9 ft)
Vane delay distance (50% recovery): 1.3 m (4.3 ft)
Damping ratio: 0.3
Damped natural wavelength: 7.4 m (24.3 ft)
Undamped natural wavelength: 7.2 m (23.6 ft)

Signal Output:
Wind speed: magnetically induced AC voltage, 3 pulses per revolution. 1800 rpm (90 Hz) = 15.0 m/s (33.6 mph)
Azimuth: analog DC voltage from conductive plastic potentiometer − resistance 10K Ω , linearity 0.25%, life expectancy − 50 million revolutions

Power Requirement:
Potentiometer excitation: 15 VDC maximum

Operating Temperature:
-50 to 60°C

Sensor Cable:
A water tight pigtail cable is supplied for electrical connections. Available in standard lengths of 3, 8 and 12 meters.
For longer cable lengths a user supplied junction box or connector may be used.

Dimensions:
Overall height: 37 cm (14.6 in)
Overall length: 55 cm (21.7 in)
Propeller: 18 cm (7 in) diameter
Mounting: 34 mm (1.34 in) diameter (standard 1 inch pipe)

Weight:
1.0 kg (2.2 lbs)

Shipping Weight:
2.3 kg (5 lbs)

* Nominal values, determined in accordance with ASTM standard procedures.
