R.M. Young 05103 Wind Monitor AC Pulsed/Potentiometer

Ships in 1-3 Days
Couldn't load pickup availability

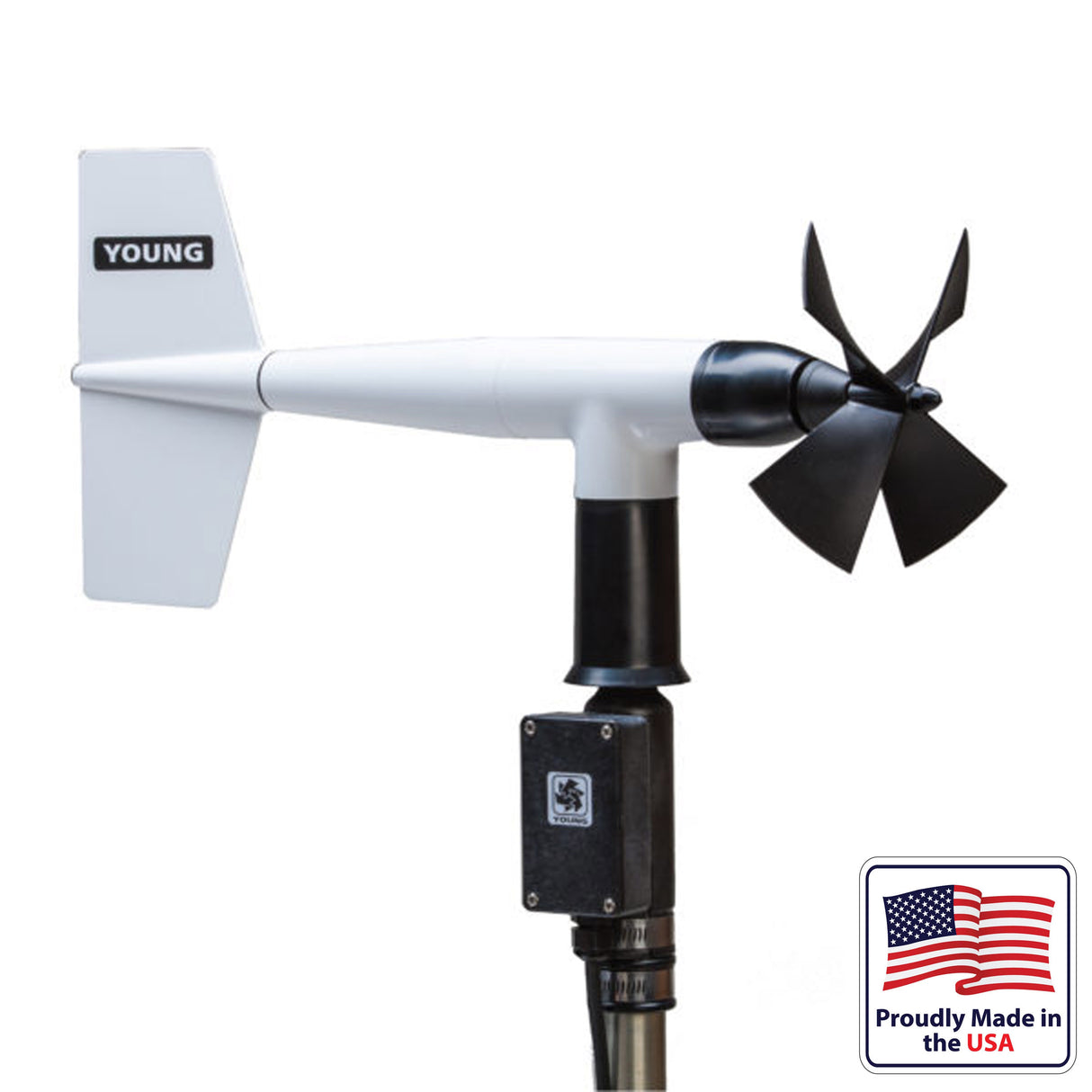

The YOUNG Model 05103 Wind Monitor measures horizontal wind speed and direction. Originally developed for ocean data buoy use it is rugged and corrosion resistant, yet accurate and light weight. A four-blade helicoid propeller, used to measure wind speed, generates an AC sine wave signal upon rotation. Wind direction is determined by a vane attached to a precision potentiometer inside an internal housing. UV stabilized plastic with stainless steel and anodized aluminum parts are used in the construction of the sensor. Precision grade stainless steel ball bearings with light contacting Teflon seals and a wide temperature grease are used to help exclude contamination. The sensor mounts on a standard 1-inch IPS pipe. A mounting orientation ring is included that engages with the base of the sensor to retain orientation when the sensor is removed for maintenance. Terminations are made in a junction box at the base of the sensor by small clamp-style connectors (no special connectors are required). (recommended cable: 18446)
Specifications
Range:
Wind speed: 0-100 m/s (224 mph)
Azimuth: 360° mechanical, 355° electrical (5° open)
Accuracy:
Wind speed: ± 0.3 m/s (0.6 mph) or 1% of reading
Wind direction: ± 3°
Threshold: *
Propeller: 1.0 m/s (2.2 mph)
Vane: 1.1 m/s (2.4 mph)
Dynamic Response: *
Propeller distance constant (63% recovery): 2.7 m (8.9 ft)
Vane delay distance (50% recovery): 1.3 m (4.3 ft)
Damping ratio: 0.3
Damped natural wavelength: 7.4 m (24.3 ft)
Undamped natural wavelength: 7.2 m (23.6 ft)
Signal Output:
Wind speed: magnetically induced AC voltage, 3 pulses per revolution. 1800 rpm (90 Hz) = 8.8 m/s (19.7 mph)
Wind direction: DC voltage from conductive plastic potentiometer − resistance 10K Ω, linearity 0.25%, life expectancy − 50 million revolutions
Power Requirement:
Potentiometer excitation: 15 VDC maximum
Operating Temperature:
-50 to 50°C
Dimensions:
Overall height: 37 cm (14.6 in)
Overall length: 55 cm (21.7 in)
Propeller: 18 cm (7 in) diameter
Mounting: 34 mm (1.34 in) diameter (standard 1 inch pipe)
Weight:
1.0 kg (2.2 lbs)
Shipping Weight:
2.3 kg (5 lbs)
