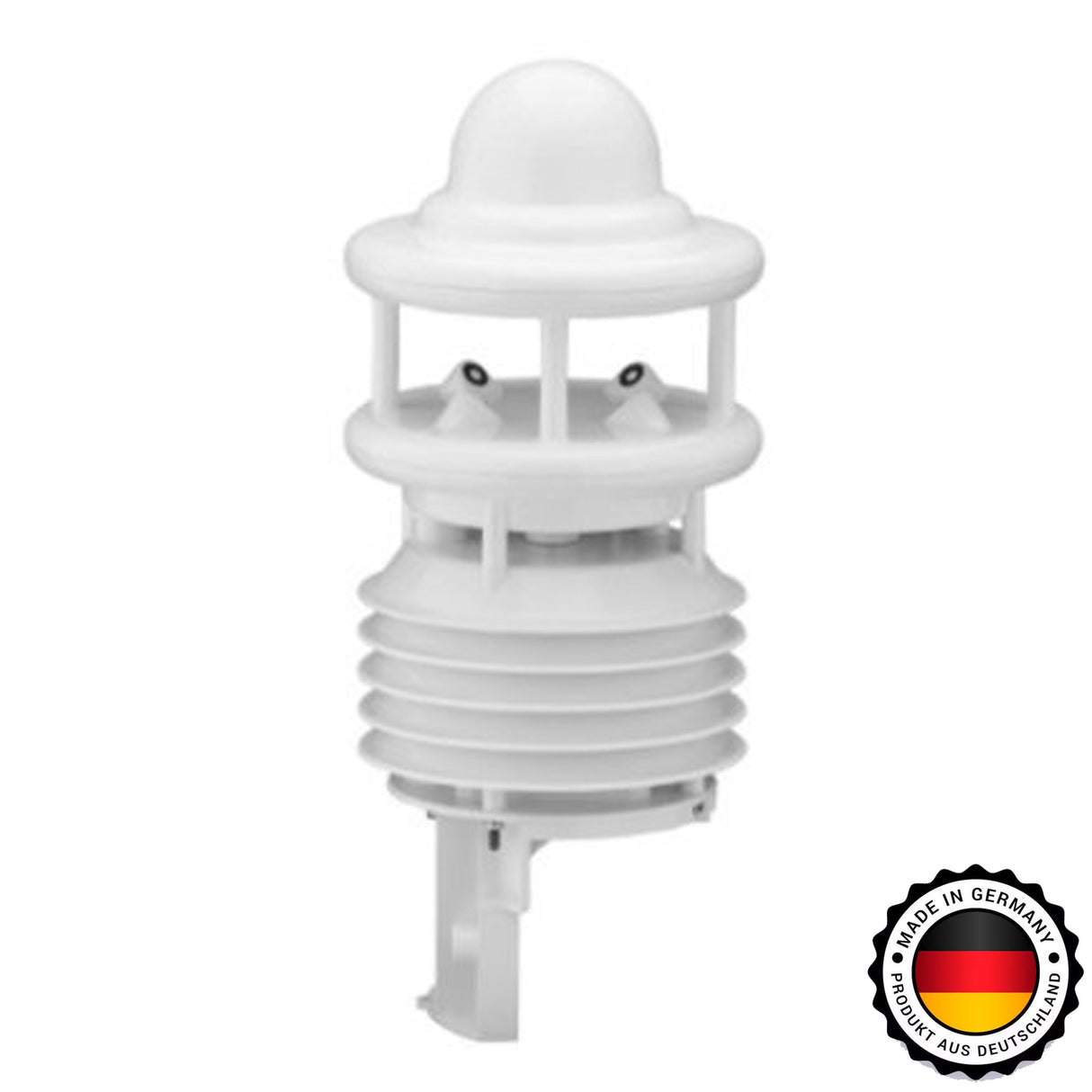

Lufft WS600-UMB Multi-Parameter Compact Weather Sensor
Ships in 2-3 Weeks
Couldn't load pickup availability
From the WS product family of professional intelligent measurement transducers with digital interface for environmental applications. Integrated design with ventilated radiation protection for measuring: Air temperature, relative humidity, precipitation intensity, precipitation type, precipitation quantity, air pressure, wind direction and wind speed. One external temperature sensor is connectable.
Temperature, relative humidity, precipitation intensity, precipitation type, precipitation quantity, air pressure, wind direction, wind speed
Ultrasonic/Wind, NTC/T, Capacitive/RH, MEMS capacitive/Pressure, 24 GHz Doppler radar/Precipitation
Wind detection with birdproof construction. Compact all-in-one weather sensor, low power, heater, aspirated radiation shield, maintenance-free operation, open communication protocol.
RS485 with supported protocols UMB-Binary, UMB-ASCII, Modbus-RTU, Modbus-ASCII, XDR and SDI-12
Advantages of the Smart Weather Sensor WS600
- Measuring wind direction and speed insusceptibly to bird nesting thanks to roofed construction
- All-in-one housing concept of a compact weather sensor combining 6 measurement parameters in one housing with only one cable connection
- Built-in data pre-processing, universal interfaces and selectable output protocols
- Compatible with many commercially available Met/HydroMet dataloggers and PLS systems thanks to an open communication protocol
- Maintenance-free operation – no moving parts that can wear out
- Suitable for all climate zones; also for solar-powered automatic meteorological stations
- Ventilated temperature and humidity measurement according to WMO guidelines
- Integrated heater that can be switched on if there is danger of frost
Examples of use of the Smart Weather Sensor WS600
The robust and maintenance-free smart weather sensor WS600 is designed for professional meteorological applications in all climate zones. It delivers reliable data, even in extreme ambient conditions.
Examples of use:
- Weather observation for road and traffic control systems
- Automatic weather station / Automatic weather sensor (AWS)
- PV-Monitoring / Solar Monitoring on photovoltaic farms
- Hydro-meteorological stations
- Weather observation for building automation
- Weather stations at airports, marinas and onboard ships
- Integration into various other systems/solutions, where environmental data is needed.

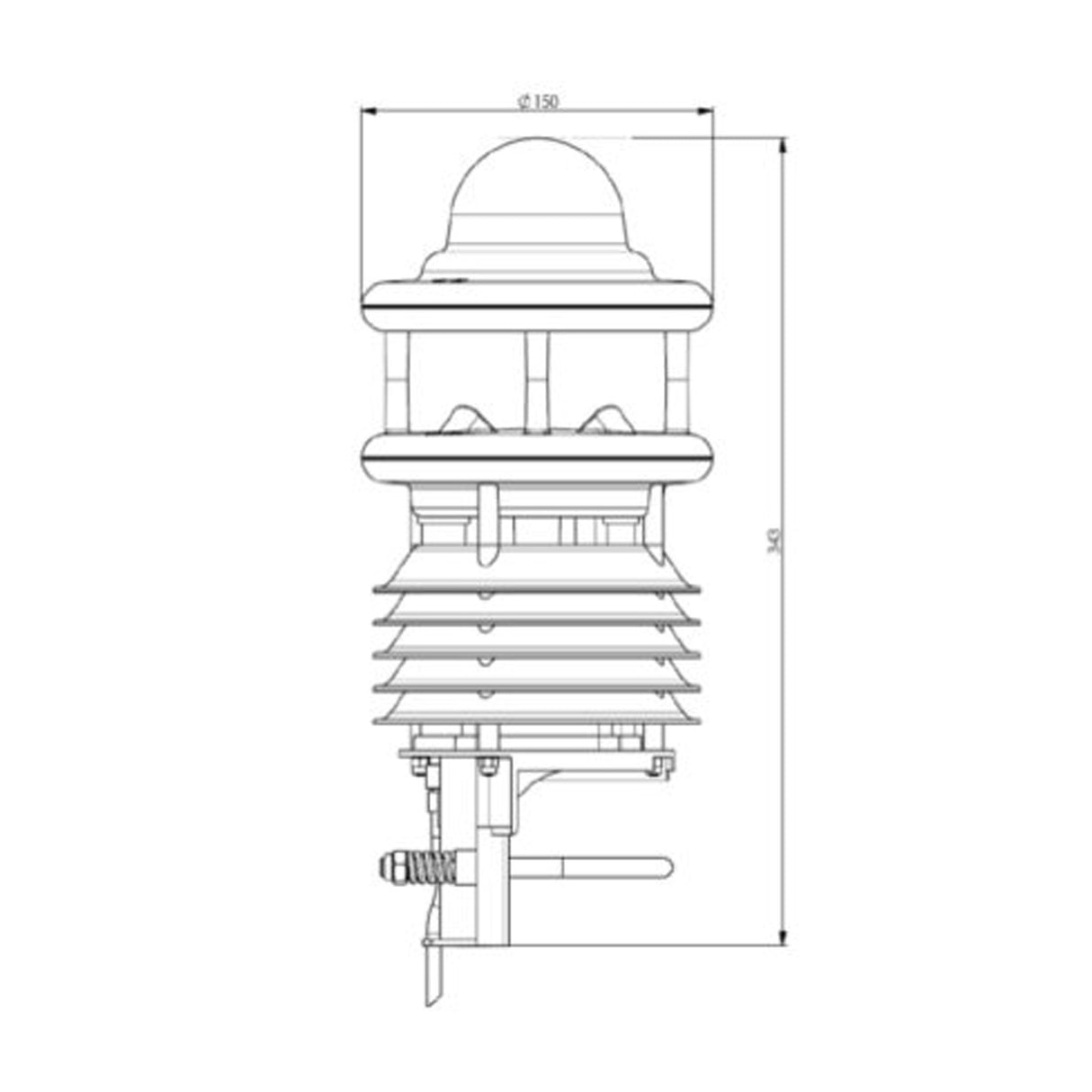

| Dimensions | Ø ca. 150mm, Height ca. 345mm, Weight approx. 1.5kg |
| Interface | RS 485 2-wire, half duplex |
| Operating power consumption | 24 VDC +/- 10% < 4VA (without heating) |
| Operating humidity range | 0...100% |
| Operating temperature range | -30...70°C |
| Temperature | |
| Principle | NTC |
| Measuring range | -30...70°C |
| Accuracy | ±0.2°C (-20°C...+50°C), otherwise ±0.5°C |
| Relative humidity | |
| Principle | capacitive |
| Measuring range | 0…100% RH |
| Accuracy | ±2% RH |
| Precipitation intensity | |
| Resolution | 0.01mm |
| Measuring range drop size | 0.3...5mm |
| Reproducibility | typ. >90% |
| Precipitation type | Rain/snow |
| Air Pressure | |
| Principle | MEMS capacitive |
| Measuring range | 300...1200 hPa |
| Accuracy | ±1.5hPa |
| Wind direction | |
| Principle | Ultrasonic |
| Measuring range | 0...359.9° |
| Accuracy | ±3° |
| Wind speed | |
| Principle | Ultrasonic |
| Measuring range | 0...60m/s |
| Accuracy | ±0.3m/s or ±3% (0...35m/s) |
