Texas Electronics TV-114 Wind Speed Sensor, Heavy Duty, AC Output
Texas Electronics | SKU:
TV-114
Sale
$73999
$77499
Unit price
/
Unavailable
Ships in 7-10 Days
Couldn't load pickup availability

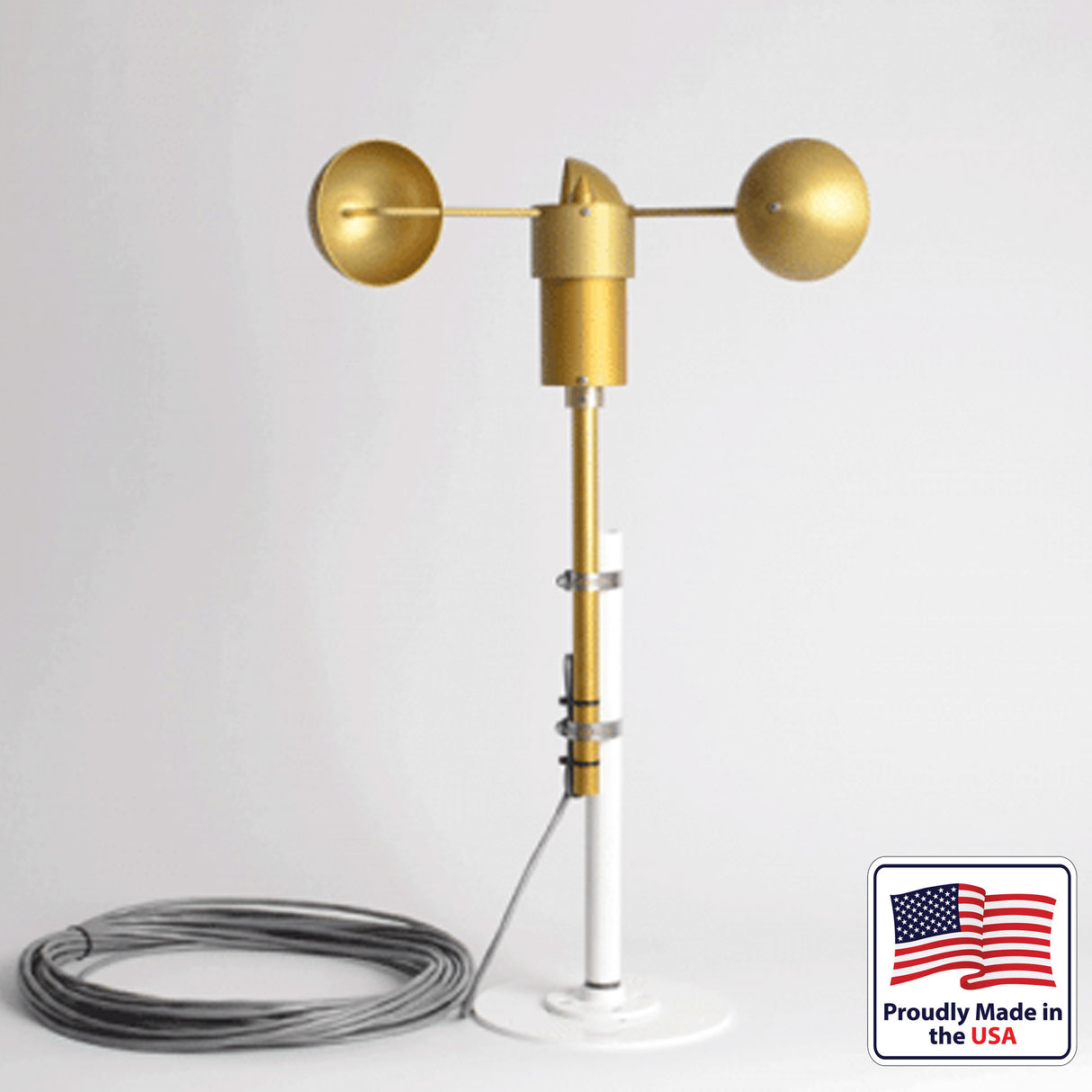

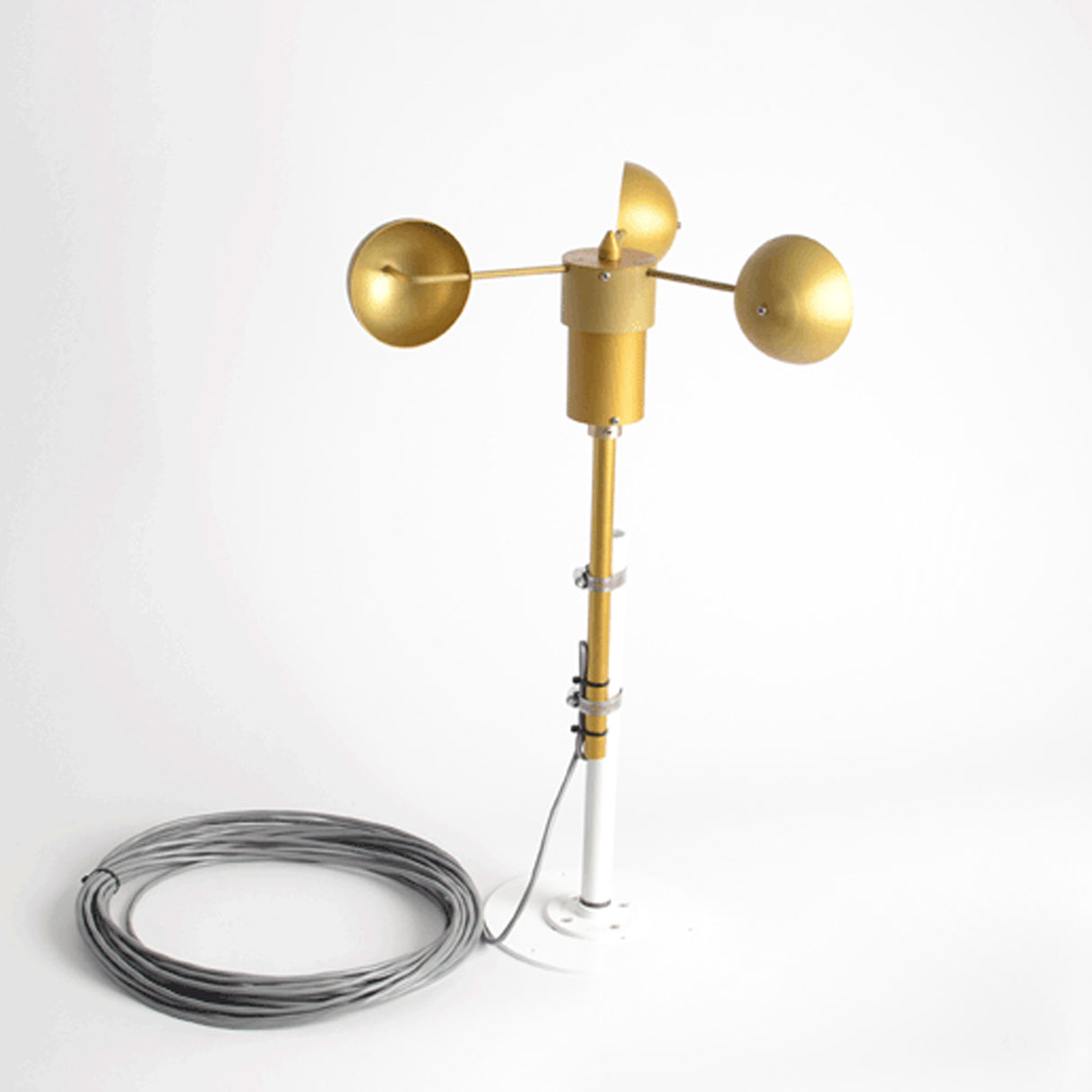

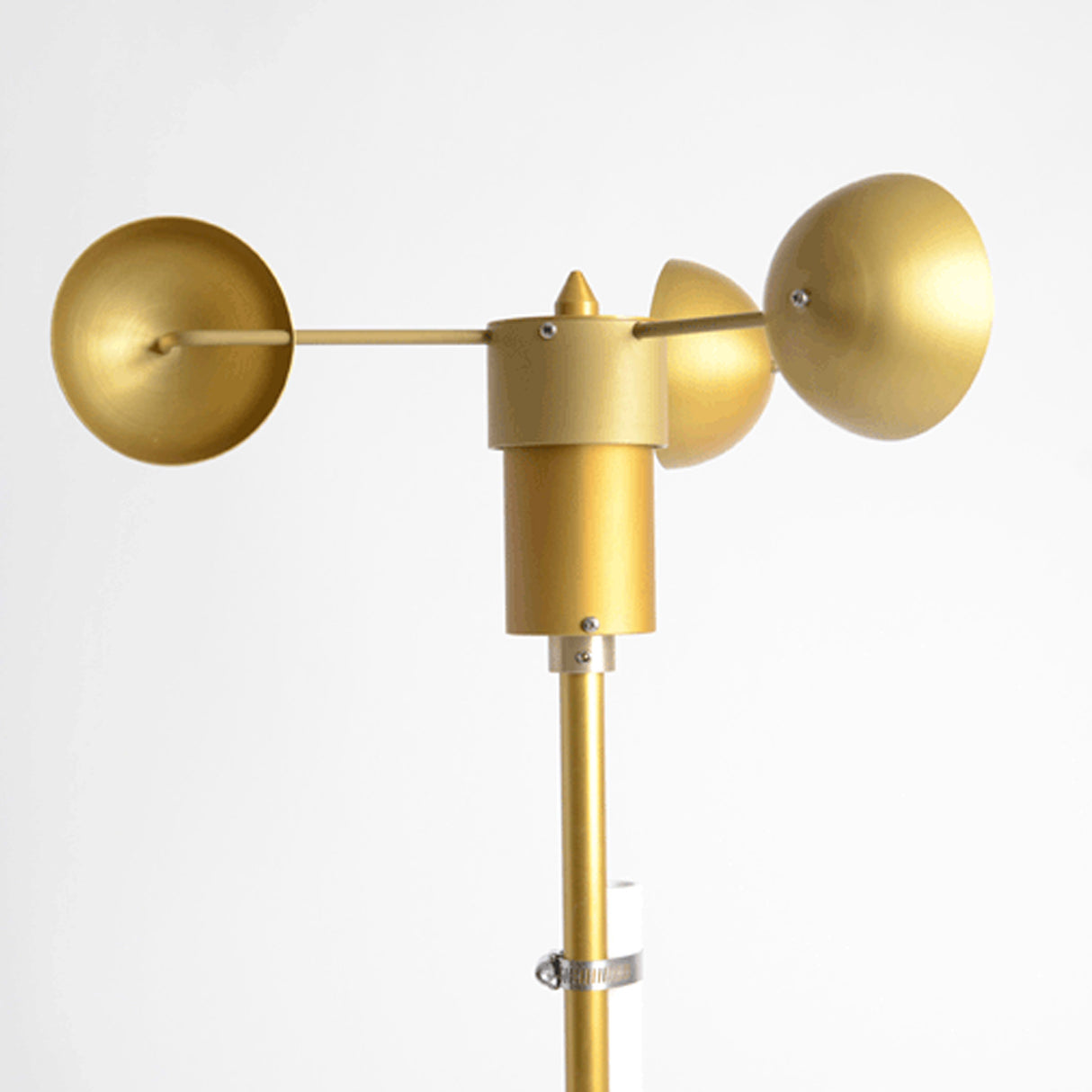

The Texas Electronics, Inc. TV-114 Wind Speed Sensor Heavy Duty is a mechanical style anemometer that measures the horizontal velocity of wind. The cup anemometer is intended for long-term, maintenance-free operation. As the cup mechanism rotates the AC generator produces an AC sine wave where the amplitude and frequency are proportional to wind speed. This sensor is self generating and requires no external power.
Specifications:
| Weight | 6.0 lbs |
| Dimensions | 24 × 14 × 4 in |
| Accuracy |
=+/- 2.0 mph (0.90 m/s) over entire range m/s)
|
| Output |
TV-114 Wind Speed, AC Generator, Heavy, TV-114-A Wind Speed, 4-20 mA, Heavy
|
| Bearings | APEC 3 or better |
| Cable |
60', 18 gauge 2 conductor (longer length available on request)
|
| Cup Diameter | 4" (10 cm) |
| Cup Wheel Diameter | 18" (46 cm) |
| Distance Constant | >21.7' (6.6 m) |
| Excitation |
None (self-generating)
|
| Finish |
Gold Anodized Aluminum
|
| Height | 7.5" (19.0 cm) |
| Mounting Pole | 0.75" I.D. (1.9 cm) |
| Operating Range | 0-100 mph |
| Operational Envelope |
0-135 mph (0 to 60 m/s)
|
| Relative Humidity | 0-100% |
| Signal Presentation |
AC Frequency; 10 rpm = 1.0 mph = 1.33 Hz; 1000 rpm = 100.0 mph = 133.33 Hz
|
| Starting Threshold |
2.0 mph (0.90 m/s)
|
| Temperature |
-40 to 160°F (-40 to 70°C)
|
| Weight |
3.75 lbs. (1.7 kg) with cable
|
| Warranty | 3 years |
