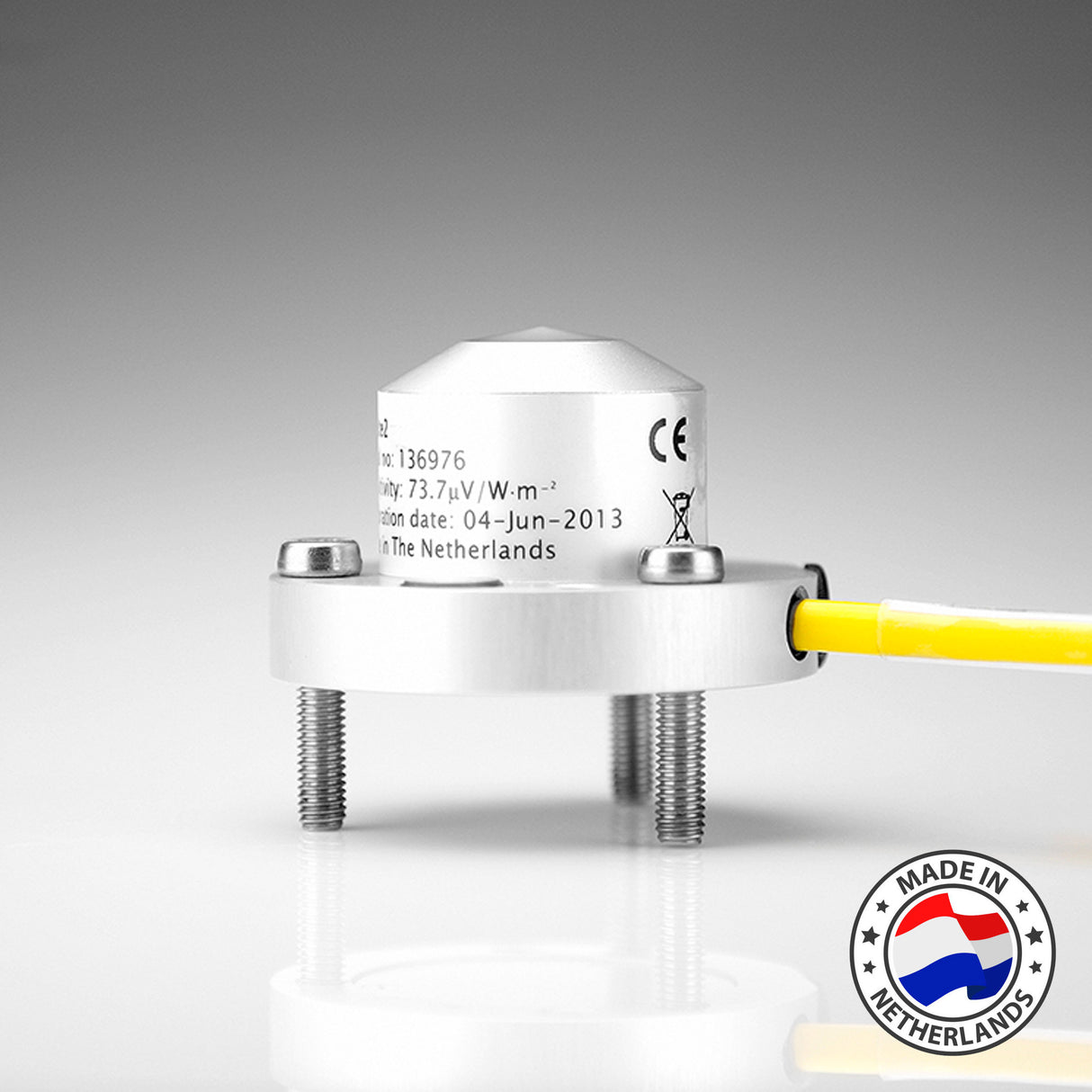

Kipp & Zonen SP Lite2 Silicon Pyranometer
Usually Ships in 3-4 Weeks
Description:
The SP Lite2 is designed for routine measurement of solar radiation. It is especially designed for Photovoltaic / solar energy module monitoring. SP Lite2 can be used under all weather conditions. The sensor measures the solar energy received from the entire hemisphere. It is ideal for measuring available energy for use in solar energy applications, plant growth, thermal convection and evapotranspiration.
SP Lite2 uses a photodiode detector, which creates a voltage output that is proportional to the incoming radiation. Also due to the unique design of the diffuser, its sensitivity is proportional to the cosine of the angle of incidence of the incoming radiation, allowing for accurate and consistent measurements.
SP Lite2 is easy to use. It can be directly connected to voltmeter or data logger. Direct readout in Watts per square meter (W/m²) can be derived from the measured voltage divided by the calibration coefficient. It is fitted with the Kipp & Zonen high quality yellow cable.
SP Lite2 features adjustment screws and a bubble level integrated in the mounting flange for your convenience. A threaded hole in the body of the housing takes our accessory screw-in mounting rod. Two instruments can easily be bolted back-to-back and fitted with a mounting rod to make a simple albedometer.
Specifications:
| Drying Cartridge and Maintenance Interval | None |
| PV Panel Temperature | -40 - +80 °C |
| Irradiance saturation | 2000 W/m² (Max.) |
| Response Time | ˂ 500 ns (95 %) |
| Digital outputs | N.A. |
| Zero offset A | None |
| Zero offset B | None |
| Directional Response | ˂ 10 W/m² (up to 80 ° with 1000 W/m² beam) |
| Non-stability | ˂ 2 % (change/year) |
| Casing IP Rating | IP67 |
| Temperature Correction | n.a. |
| Operating humidity | 0 - 100 % |
| Operating temp range 1 | -40 - +176 °F (-40 - +80 °C) |
| Weight EU | 0.2 lb (110 g) |
| Classification | Fast response Class C (ISO 9060:2018) |
| Material enclosures | Aluminum, anodised |
| Sensitivity | N.A. |
| Analogue Outputs | 0 - 120 mV |
| Non-linearity | ˂ 3 % (0 - 100 W/m²) |
| Spectral accuracy | 400 - 1100 nm |
| Cable Length | 16, 50 ft (5, 15 m) |
