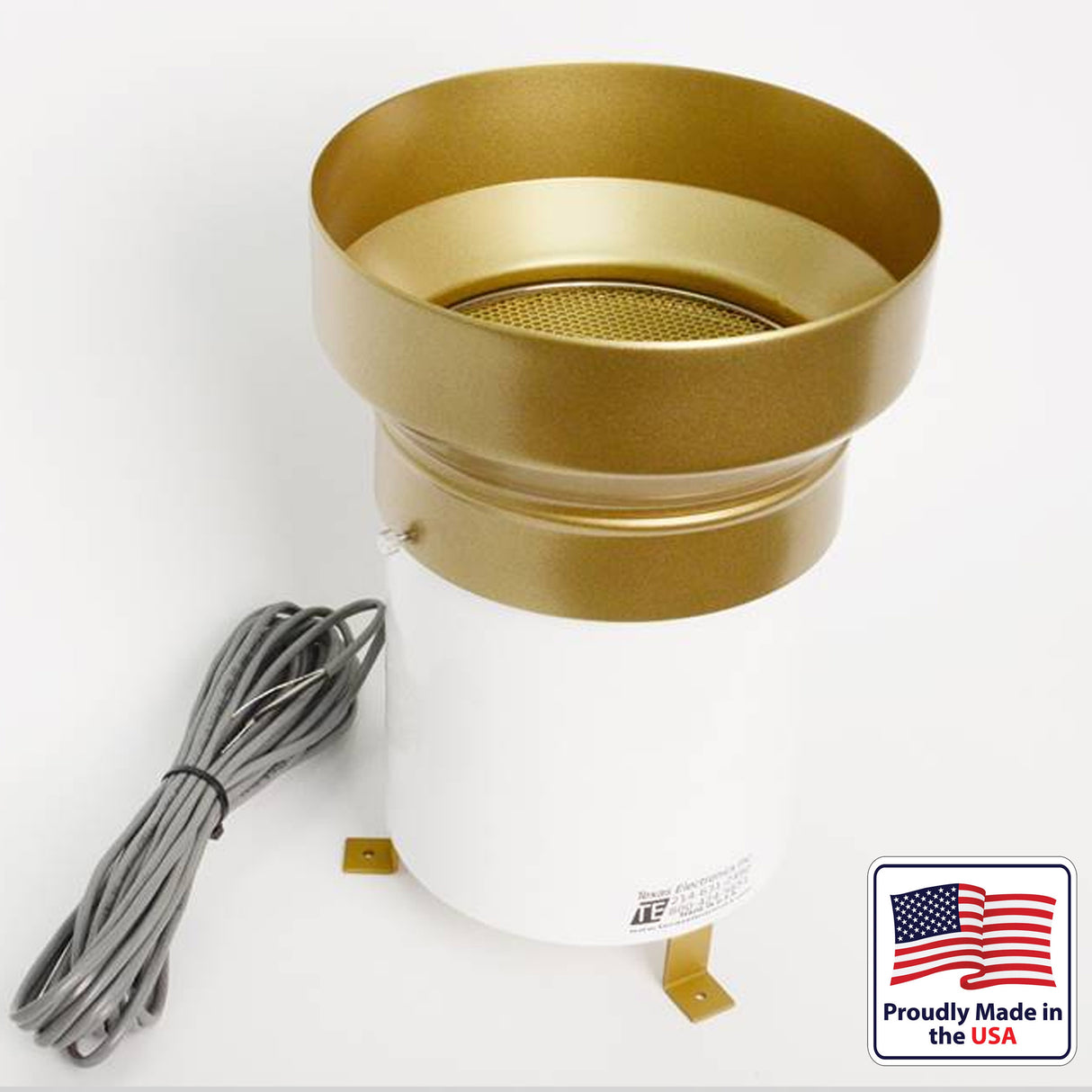

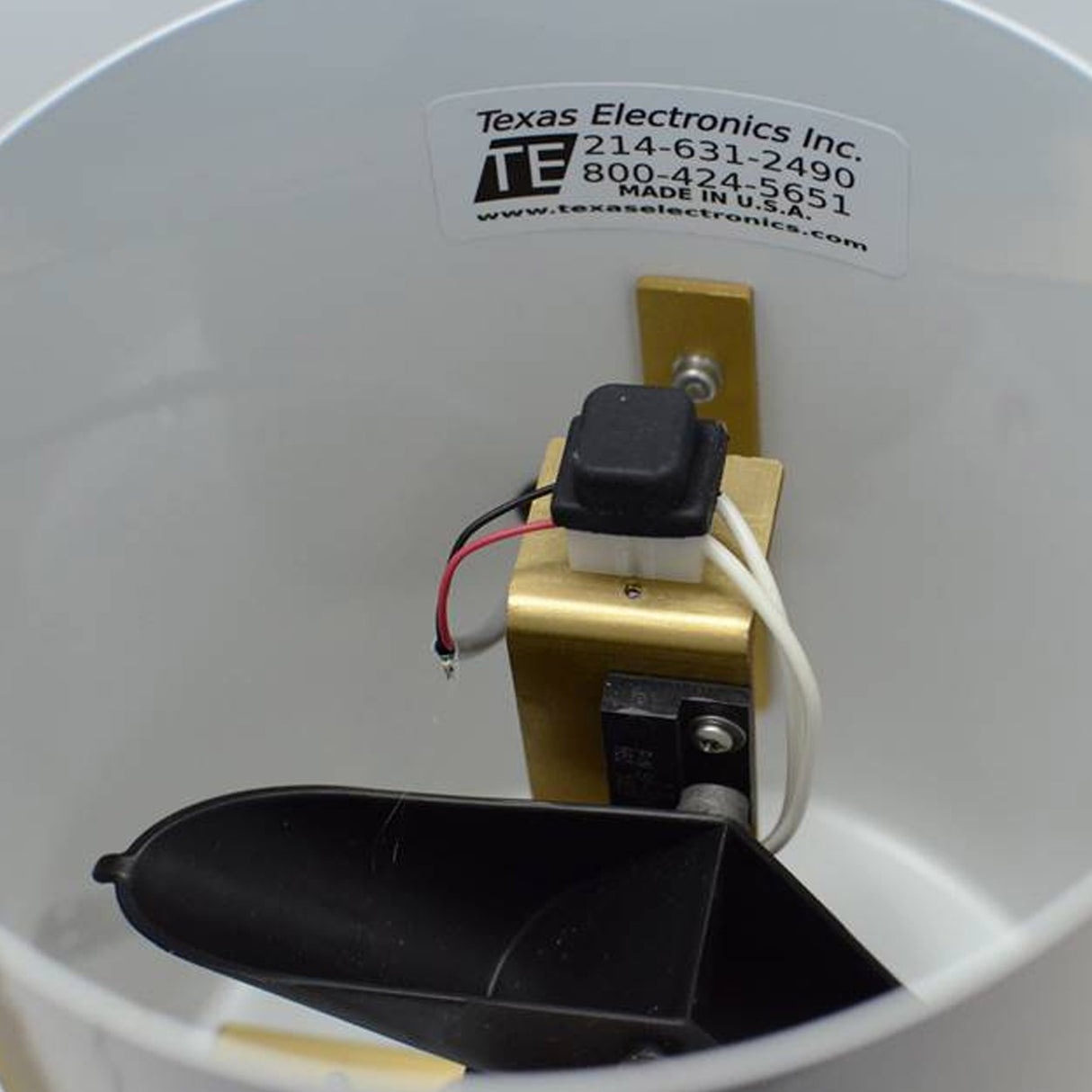

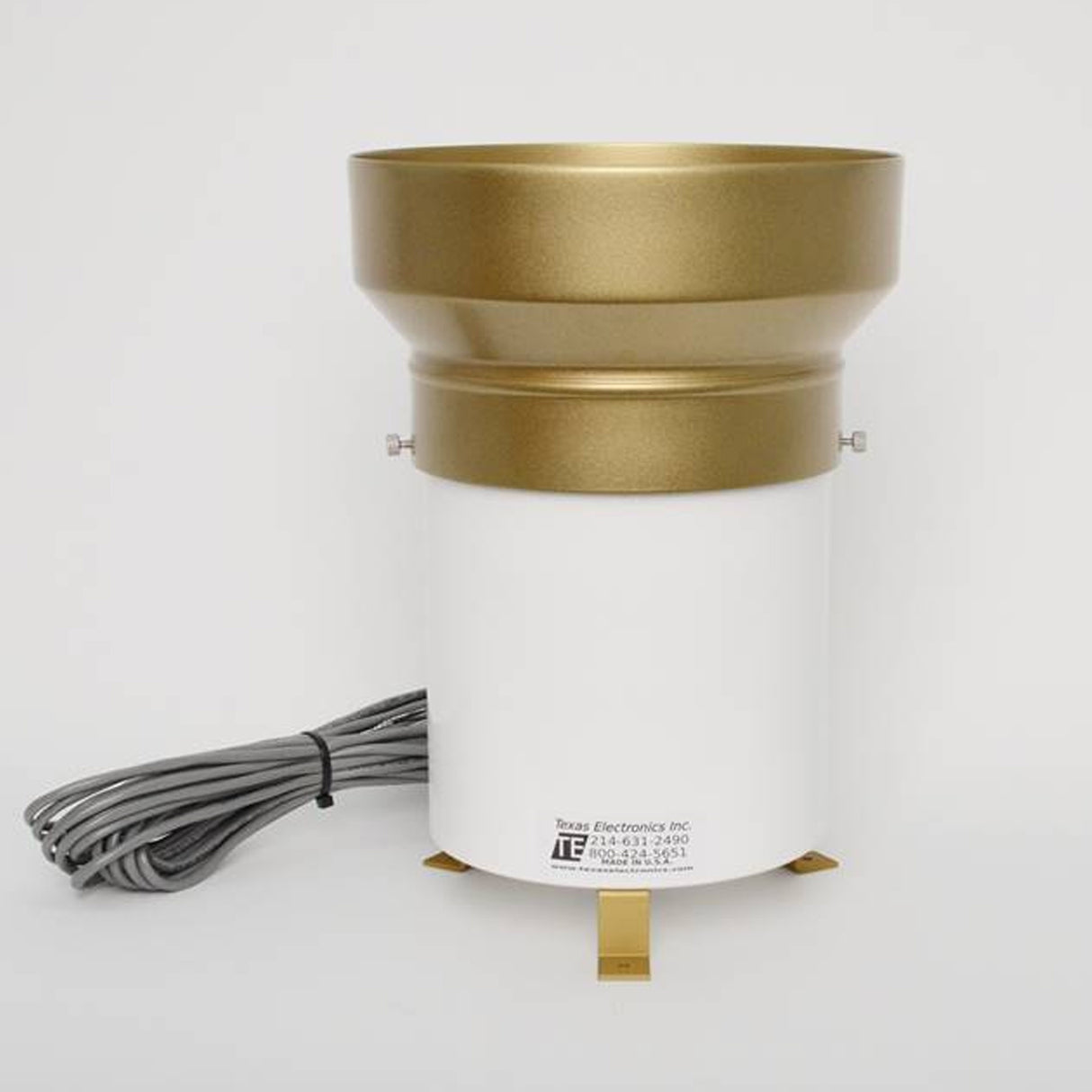

The Texas Electronics, Inc. TR-525USWH 8" Heated Tipping Bucket Rain Gauge with 8" diameter collector funnel is a remote tipping bucket style rain gauge that measures liquid precipitation. The Rain Gauge is a freestanding receptacle for measuring precipitation. Through an opening at the top of the device, rain is collected and then funneled to a mechanical device, called a tipping bucket. As water is collected, the tipping bucket fills to the point that it tips over, causing a momentary closure of a switch to incrementally measure rainfall accumulation. This action empties the bucket in preparation for additional measurement. Water discharged by the tipping bucket passes out of the rain gauge with no need for emptying. The TR-525USW is specifically designed to meet the National Weather Service's requirements for rainfall measurement.

Includes a heating unit. Should be used where snow or freezing weather may occur. It consists of two low-power heating elements that prevent disruption in readings during freezing times. The heaters are thermostatically controlled with an additional thermal overload. More information available under downloads tab.

Weight:                             6.00 lbs
Dimensions:                      15 x 12 x 10"
Accuracy:                           0-2 in. (50 mm) per hour; +/-1%
Bounce Setting Time:        0.75 ms
Bucket:                              Black PP injection molded
Cable:                                10', 24 gauge 2 conductor
Collection Diameter:         8.00" (203 mm) with knife-edge
Splash Out Protection:     >2" (50 mm)
Funnel Depth:                   6.4" (163 mm)
Height:                             11.125"
Level:                                Integral Bubble Level
Pivot:                                Ground bronze pivots with hardened stainless steel shaft
Resolution:                       0.01" or 0.2 mm
Switch:                              Momentary potted reed switch
Switch Rating:                  30 VDC @ 2 A, 115 VAC @ 1 A
Warranty:                         3 Years
